AREA_SITE
FL6M
FL6M modular floodlight configuration — part of the M Series family.
480W
Power
125lm/W
Efficacy
60K+ lm
Output

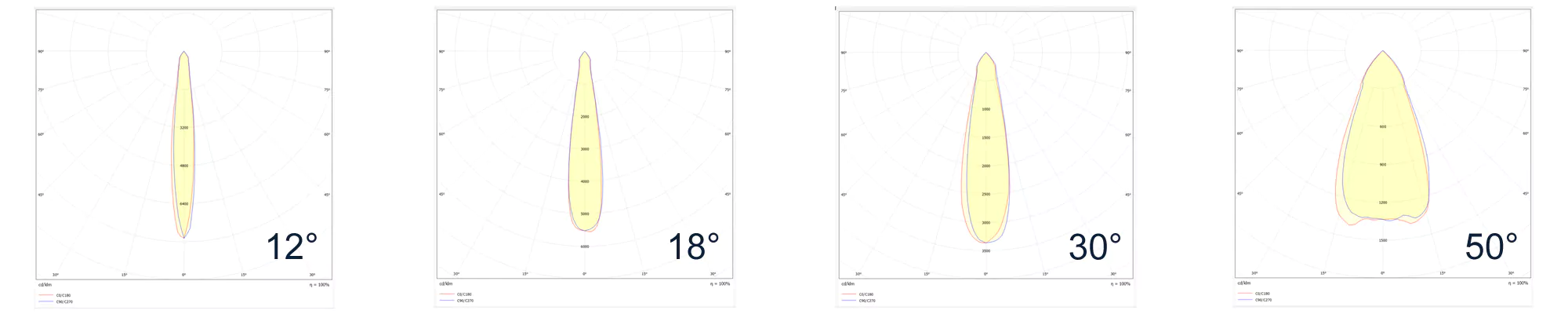

18~50°
Beam Angle
Beam Angle Type:

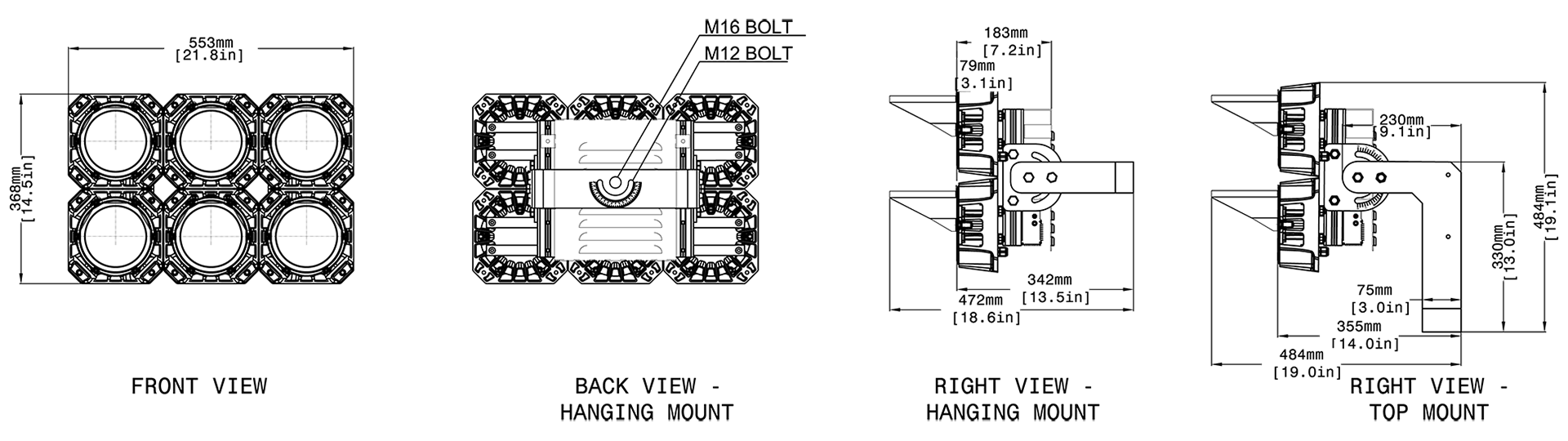

Dimensions:
Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | FL6M-480W |
|---|---|
| Lumen Output | >58700lm |
| System Wattage | 480W |
| CRI | 70~95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (High Voltage) | 347~480VAC |
| Input Voltage (Low Voltage) | 110~277VAC |
| L70 Hours | 100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| Effective Projected Area (EPA) at 90° | 1.58 (sq. ft.) |
| L" × W" × H" | 21.8" X 14.5"X 8.1"/553*368*343mm |
| Approximate Weight | ( 37 lbs) 16.8 kgs |
| Material | Aluminum / Glass |
| LED Brand | Bridgelux |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: FL6M-480W-30K-S
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| FL6M (Light With 6 Module) | 480W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
Request a Sample
Experience the quality and performance of our FL6M firsthand. Contact our team today for a free sample and technical consultation.
