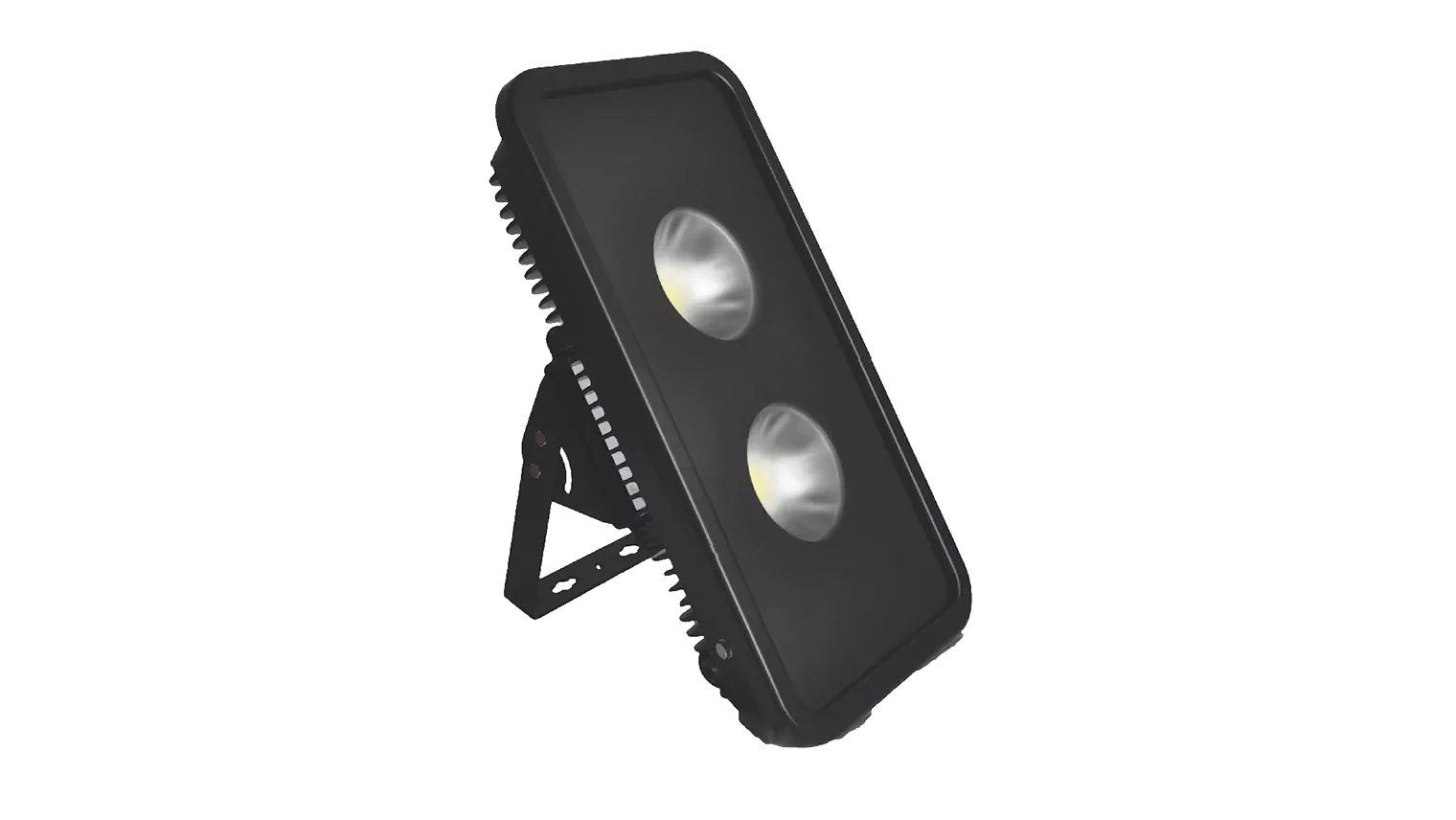

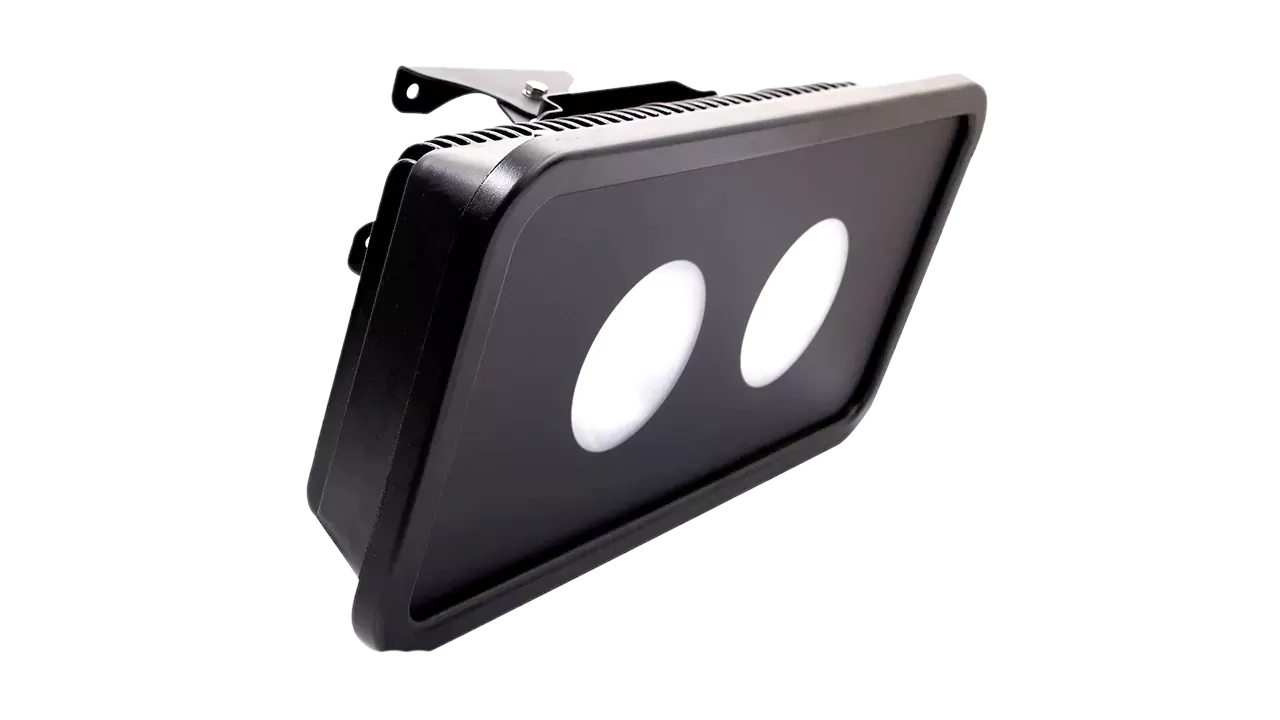

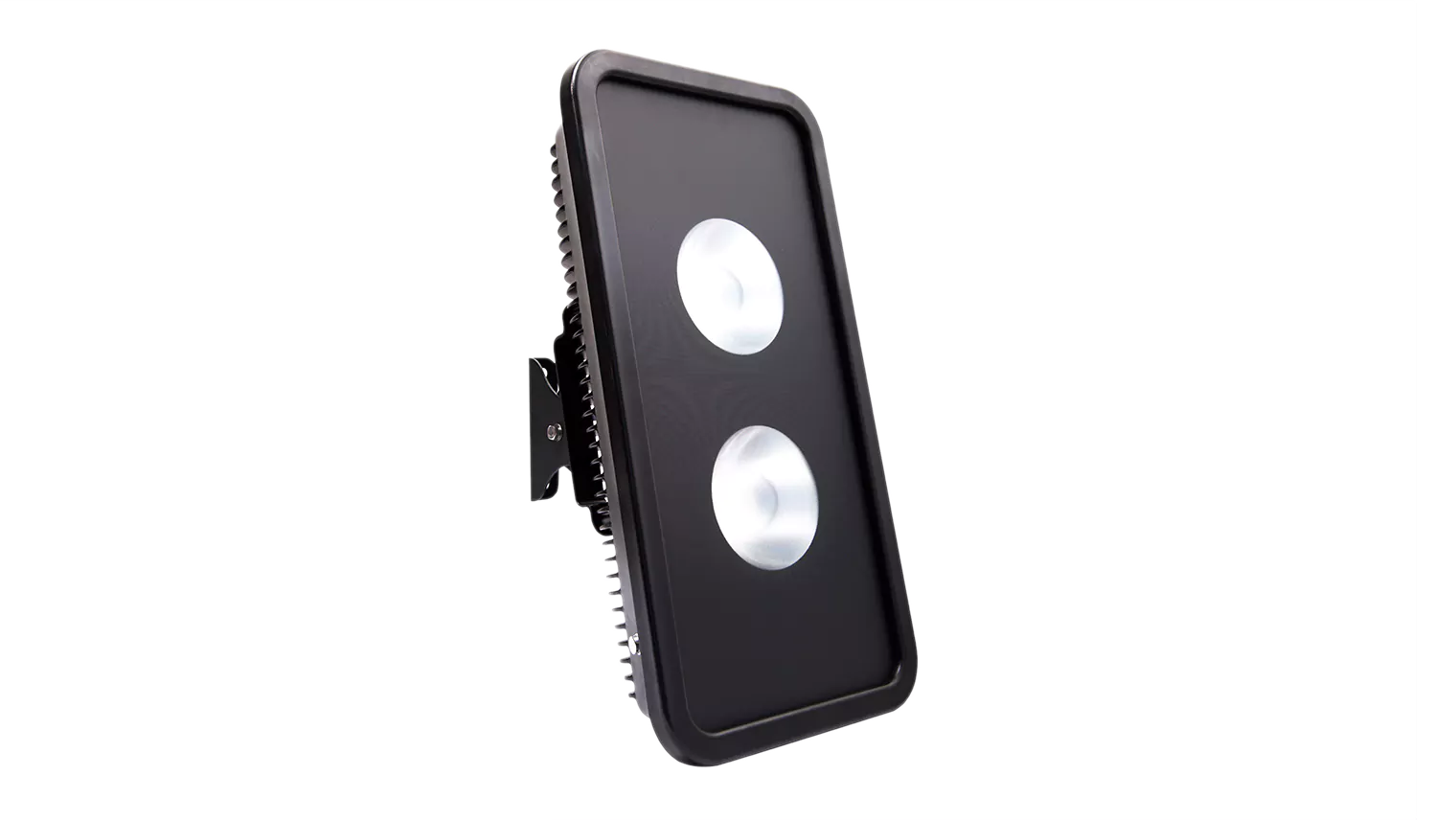

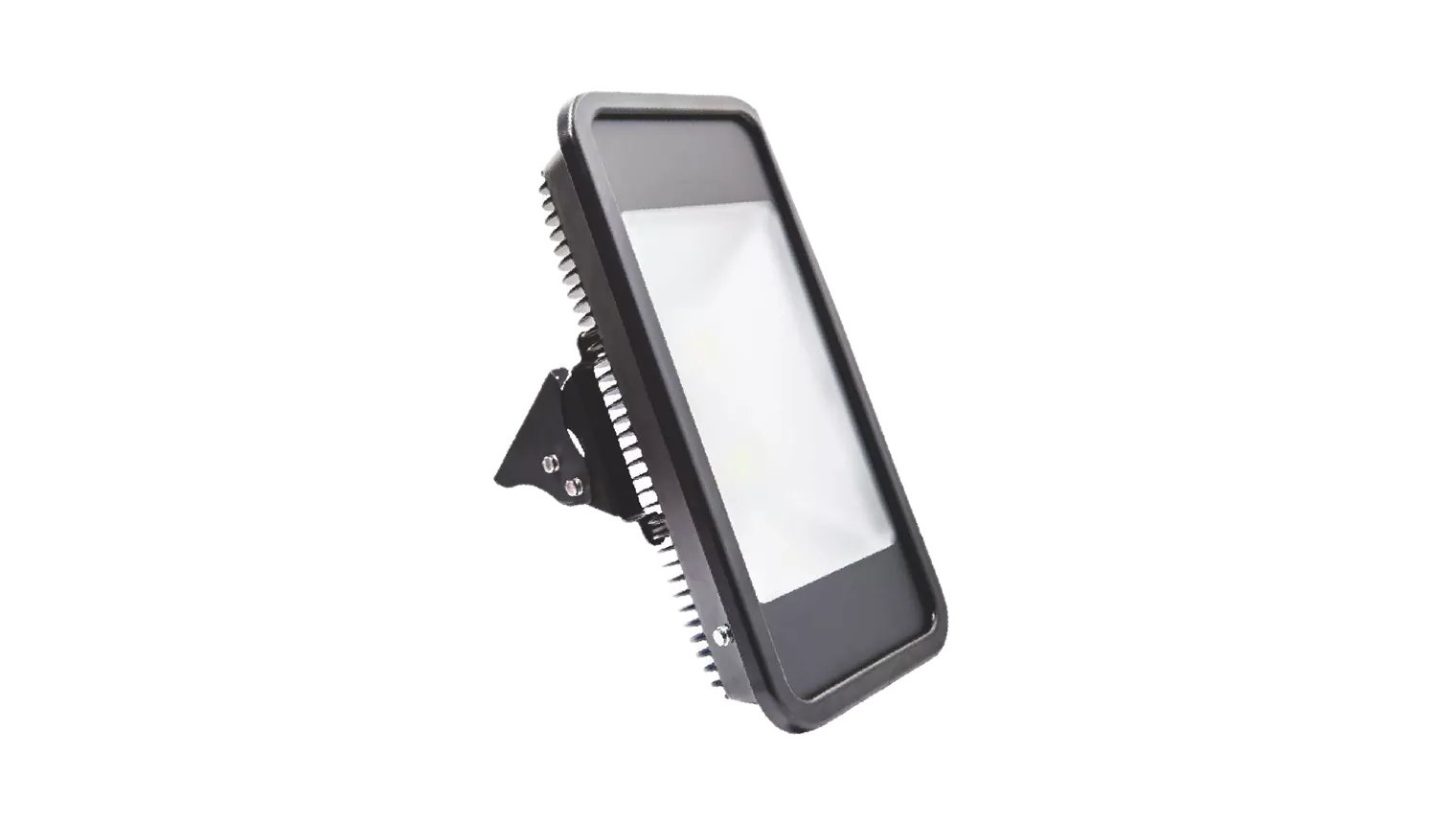

RT590FL-S 160W
The RT590FL-S is a 160 W LED floodlight for general floodlighting, façades, yards and perimeter security where a robust, efficient luminaire is needed without sports-grade output. Its 130 lm/W-class efficacy and IP66 protection suit permanent outdoor duty, and a 10 kV surge suppressor guards against grid transients. The adjustable bracket aims the beam during installation, while the -40 °C to +55 °C operating range covers most climates. Sharing the SolarOne floodlight build, the RT590FL-S pairs with larger RT models on a common bracket platform so a site can mix wattages without multiplying spare parts. Every order includes a photometric layout matched to your drawing, helping you hit target illuminance without over-specifying wattage or sprawling the bill of materials.

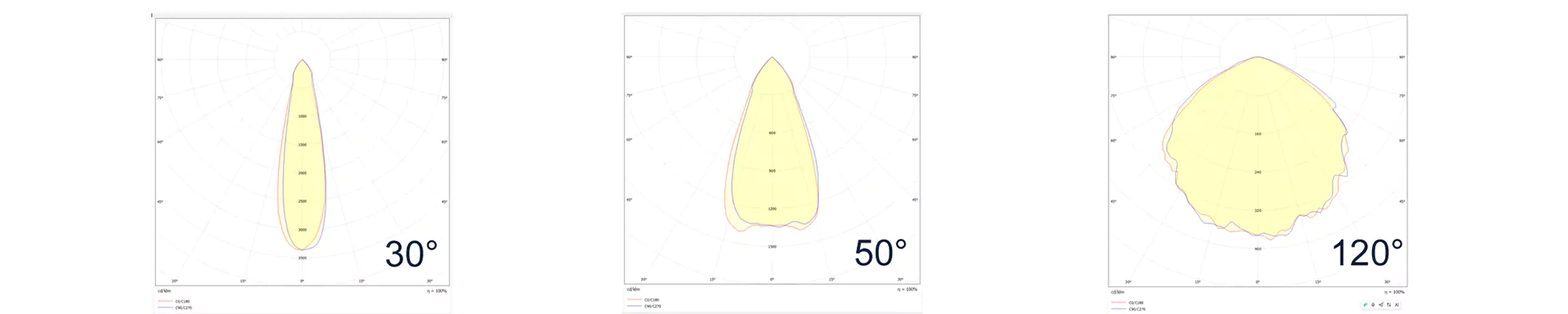

Beam Angle Type:

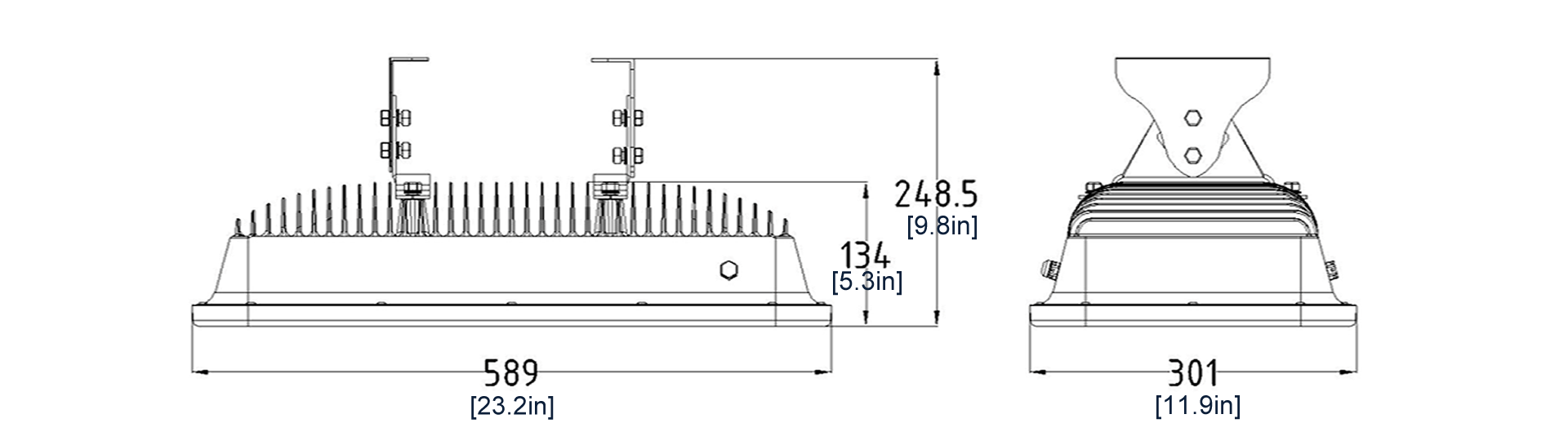

Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | RT590FL-160W |
|---|---|
| Lumen Output | >20,800 lm |
| System Wattage | 160W |
| CRI | 70-95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (High Voltage) | 347-480VAC |
| Input Voltage (Low Voltage) | 110-277VAC |
| L70 Hours | >100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| Effective Projected Area (EPA) at 90° | 0.26 (sq. ft.) |
| L" × W" × H" | 23.2" x 11.9" x 9.8" / 589 x 301 x 248.5mm |
| Approximate Weight | 12.8 kgs( 28.2 lbs) |
| Material | Aluminum / Glass |
| LED Brand | Bridgelux |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: RT590FL-160W
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| LED Flood Light | 160W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
120=120° 30=30° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket |
Request a Sample
Experience the quality and performance of our RT590FL-S firsthand. Contact our team today for a free sample and technical consultation.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
