RT400HB 130W
The RT400HB is a 130 W high-bay and low-bay LED luminaire for warehouses, sports halls, workshops and covered industrial areas. Its optical family covers the 30° to 90° beam spread needed from low ceilings to high-bay racks, putting light on the floor and work plane instead of the roof. IP66 protection and a 10 kV surge suppressor suit demanding indoor-industrial and semi-outdoor duty, and the robust housing handles vibration and dust. Sharing the SolarOne build language, the RT400HB pairs with the RT500HB on one bracket platform so a facility can mix wattages across zones. Every order includes a photometric layout matched to your ceiling height and target lux, helping you cut energy use versus legacy HID fittings without sacrificing uniformity.

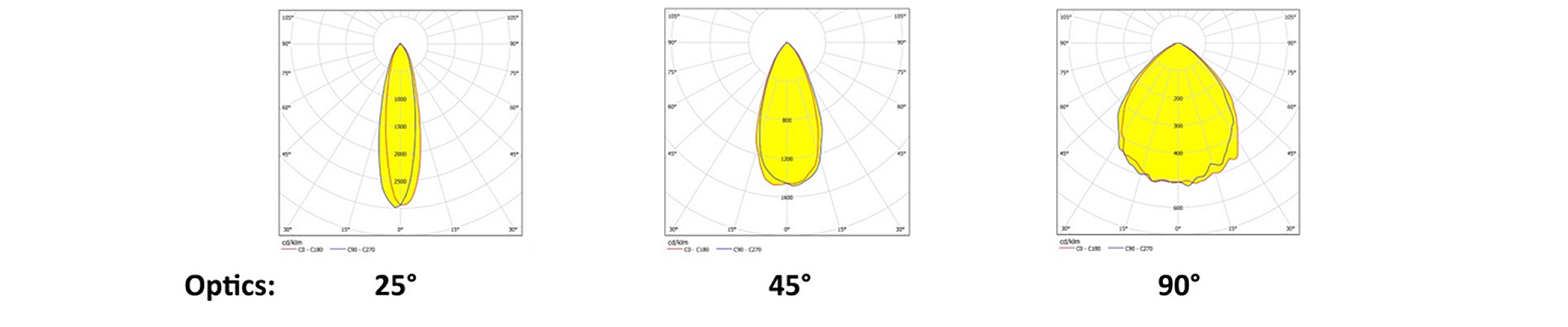

Beam Angle Type:

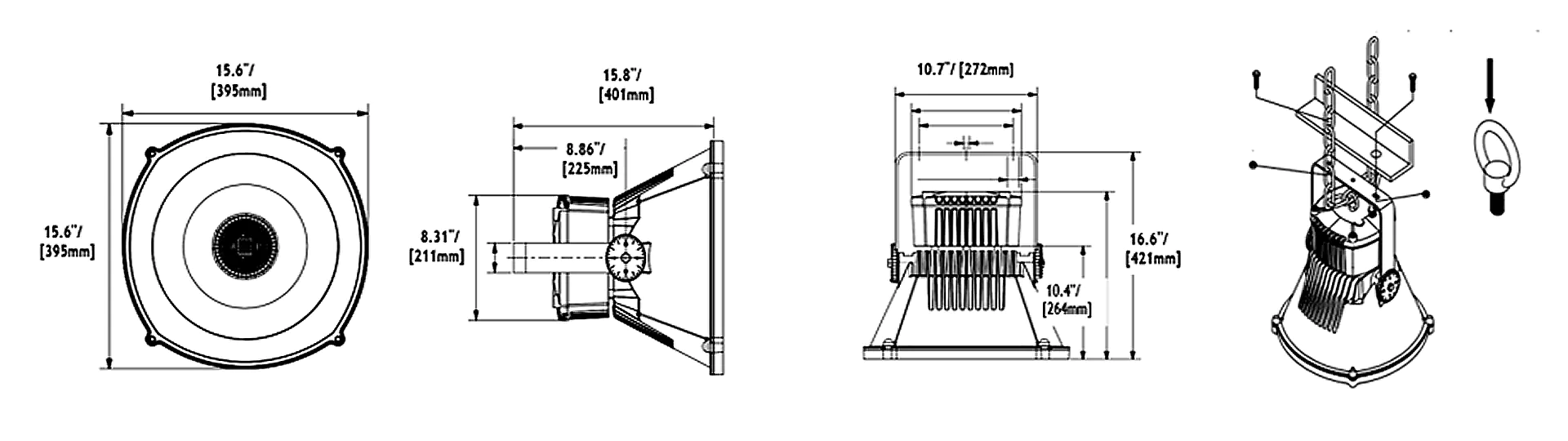

Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | RT400HB-130W |
|---|---|
| Lumen Output | >16,900 lm |
| System Wattage | 130W |
| CRI | 70-95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (Low Voltage) | 110-277VAC |
| L70 Hours | >100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| L" × W" × H" | 15.6" x 15.6" x 15.8" / 395 x 395 x 401 mm |
| Approximate Weight | 8.0 kgs( 17.6 lbs) |
| Material | Aluminum / Glass |
| LED Brand | Bridgelux |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: RT400HB-130W
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| HB=HighBay Light | 130W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) | 25=25° 45=45° 90=90° |
GRY=Grey BLK=Black |
1.0-10V | U = Hang Mount Bracket |
Request a Sample
Experience the quality and performance of our RT400HB firsthand. Contact our team today for a free sample and technical consultation.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
What mounting height are these luminaires designed for?
The high-bay and low-bay series cover the 30–90° beam family used from warehouses and sports halls up to high-bay applications, and the roadway series ships with an asymmetric 70° × 140° distribution for street lighting.
Can you match an existing installation footprint?
Yes — send us the existing photometric report or IES file and we will confirm whether the same mounting positions and aiming angles work, or supply a replacement layout.
How do I order the right configuration?
Every ordering code follows the same pattern: series name, system wattage, CCT, input voltage, beam angle, finish, dimming and bracket. The ordering table on this page lists every option for this model.
