FL4M
FL4M modular floodlight configuration — part of the M Series family.
320W
Power
125lm/W
Efficacy
40K+ lm
Output
12~50°
Beam Angle
3000~5700K
CCT
70~95
CRI

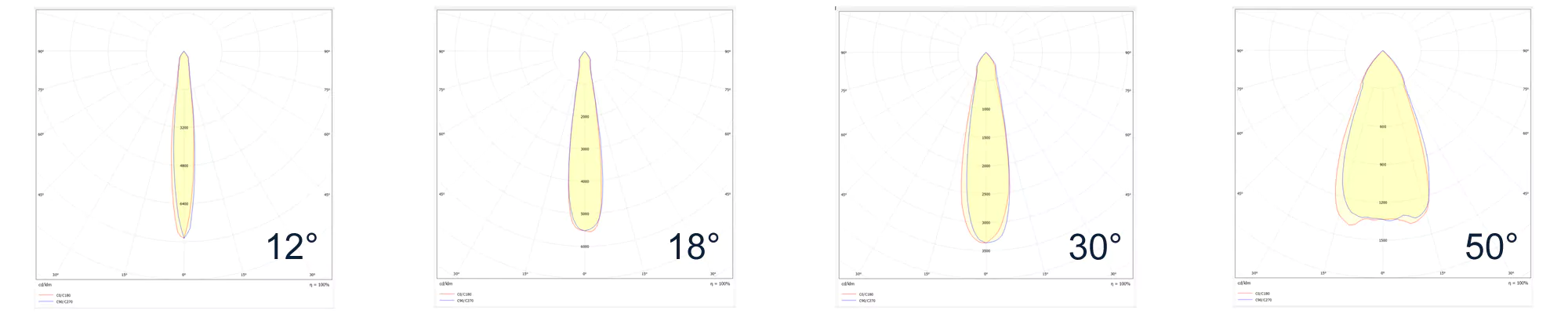

Beam Angle Type:

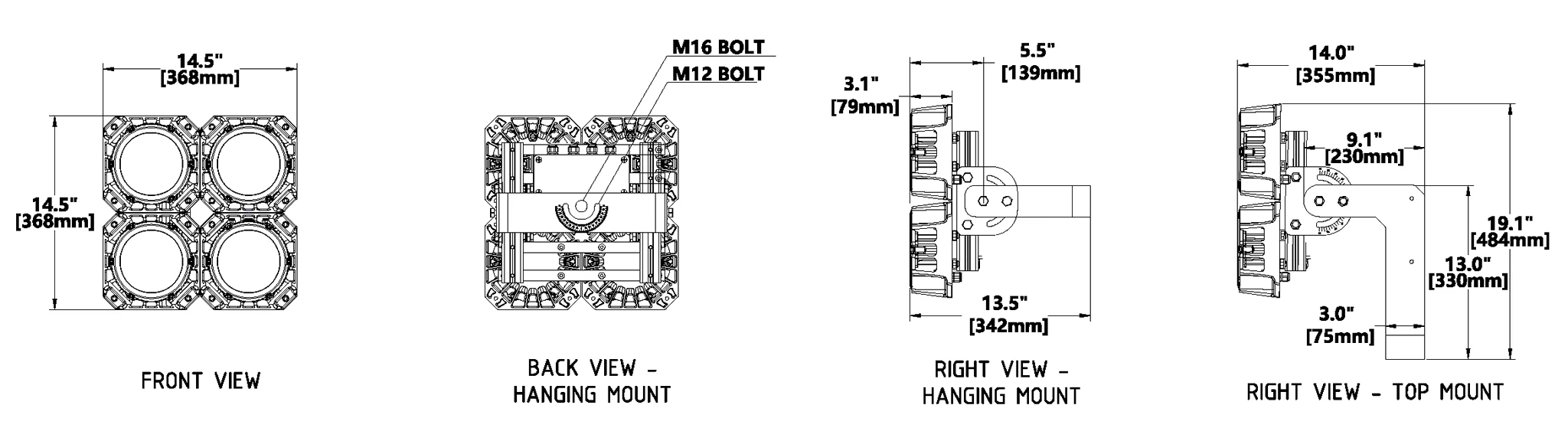

Dimensions:
Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | FL4M-320W |
|---|---|
| Lumen Output | >41,600lm |
| System Wattage | 320W |
| CRI | 70~95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (High Voltage) | 347~480VAC |
| Input Voltage (Low Voltage) | 110~277VAC |
| L70 Hours | 100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| Effective Projected Area (EPA) at 90° | 1.05 (sq. ft.) |
| L" × W" × H" | 14.5" X 14.5"X 8.1" / 368*368*343mm |
| Approximate Weight | ( 24.5 lbs) 11.0 kgs |
| Material | Aluminum / Glass |
| LED Brand | Bridgelux |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: FL4M-320W-30K-S
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| FL4M (Light With 4 Module) |
320W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1. 0-10V 2. DMX 3. Dali 4. Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
