RT410 Series 260W
The RT410 Series is a 260 W LED floodlight delivering 130 lm/W efficacy across a wide 18° to 100° beam range, so a single model covers both long-throw façade lighting and broad-area site illumination. Its die-cast aluminium body and IP66 rating suit permanent outdoor use in car parks, building perimeters, industrial yards and sports training areas, while the adjustable bracket simplifies aiming during installation. A 10 kV surge protector and -40 °C to +55 °C operating range keep it running through harsh weather, and the flicker-free driver supports broadcast-grade environments. Every RT410 ships with a photometric layout matched to your venue drawing, helping you hit target lux and uniformity without over-specifying wattage.

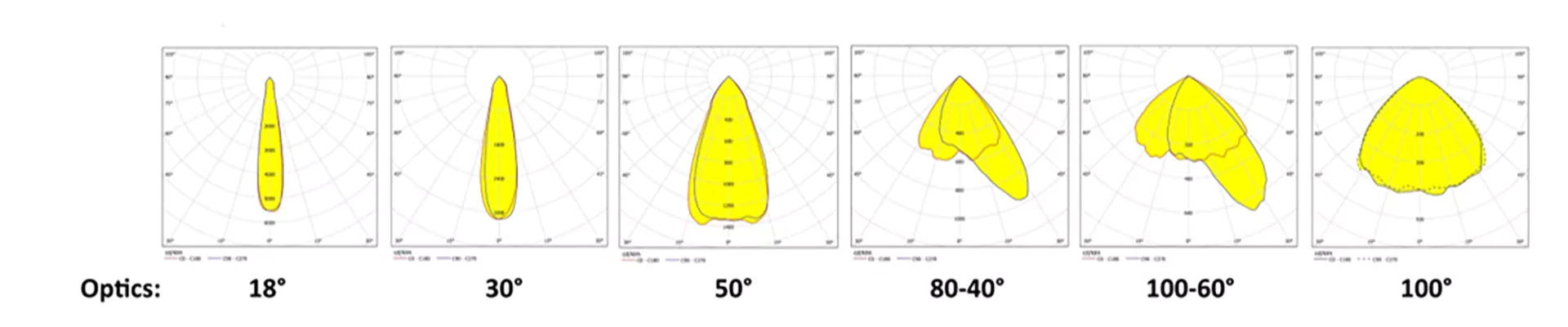

Beam Angle Type:

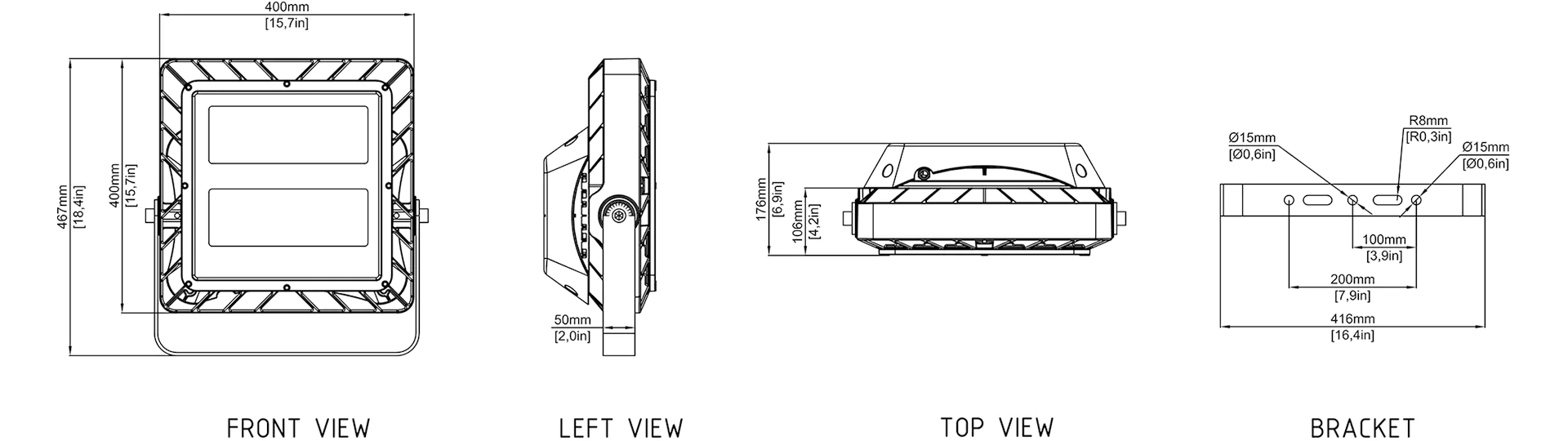

Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | RT410FL-260W-XXK-S |
|---|---|
| Lumen Output | >31,200lm |
| System Wattage | 260W |
| CRI | 70~95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (High Voltage) | 347~480VAC |
| Input Voltage (Low Voltage) | 110~277VAC |
| L70 Hours | 100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| Effective Projected Area (EPA) at 90° | 1.4(sq. ft.) |
| L" × W" × H" | 15.8" X 15.8"X 4.2" / 418 X 400 X 172 (mm) |
| Approximate Weight | (30lbs)13.5kgs |
| Material | Aluminum / Glass |
| LED Brand | Bridgelux |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: RT410FL-260W-XXK-S
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| RT410FL | 260W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
30=30° 50=50° 100=100° 8040=80°X 40° 11060=110°X 60° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
Request a Sample
Experience the quality and performance of our RT410 Series firsthand. Contact our team today for a free sample and technical consultation.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
