VSP-XXXXW-12M-YP 4200W
The VSP-XXXXW-12M-YP is the 12-metre-class member of the 4200 W VSP broadcast stadium floodlight family, built for flicker-free HDTV and super-slow-motion replay. Its remote LED driver enclosure eases maintenance and isolates heat from the optics, while the high-frequency driver removes the flicker that spoils broadcast images. The longer 12 m optic throws light evenly across large pitches and arenas, and IP66 protection with a 10 kV surge suppressor handles permanent mast duty in harsh climates. Engineered to Olympic-grade, federation-ready standards, it ships with a photometric layout matched to your venue drawing and target lux, and shares the VSP platform so an entire floodlight tower scales from one product line.

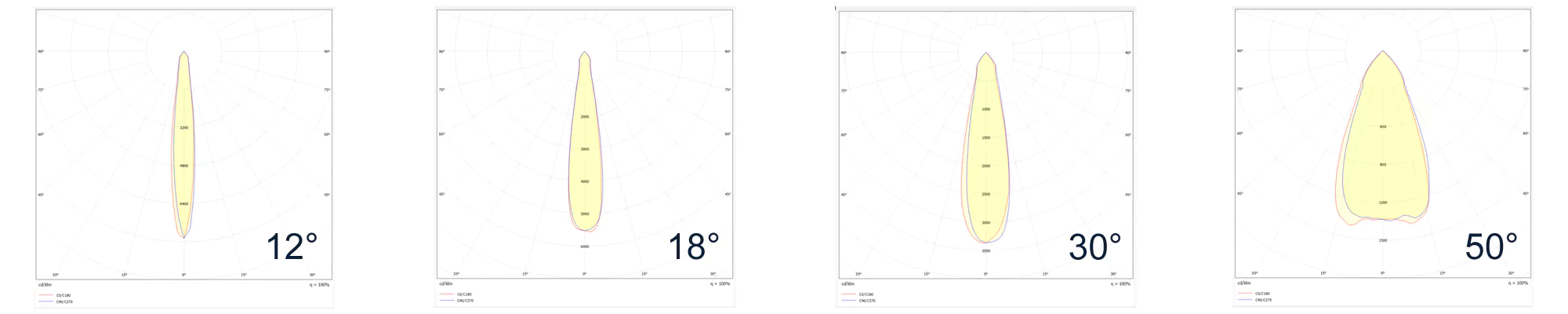

Beam Angle Type:

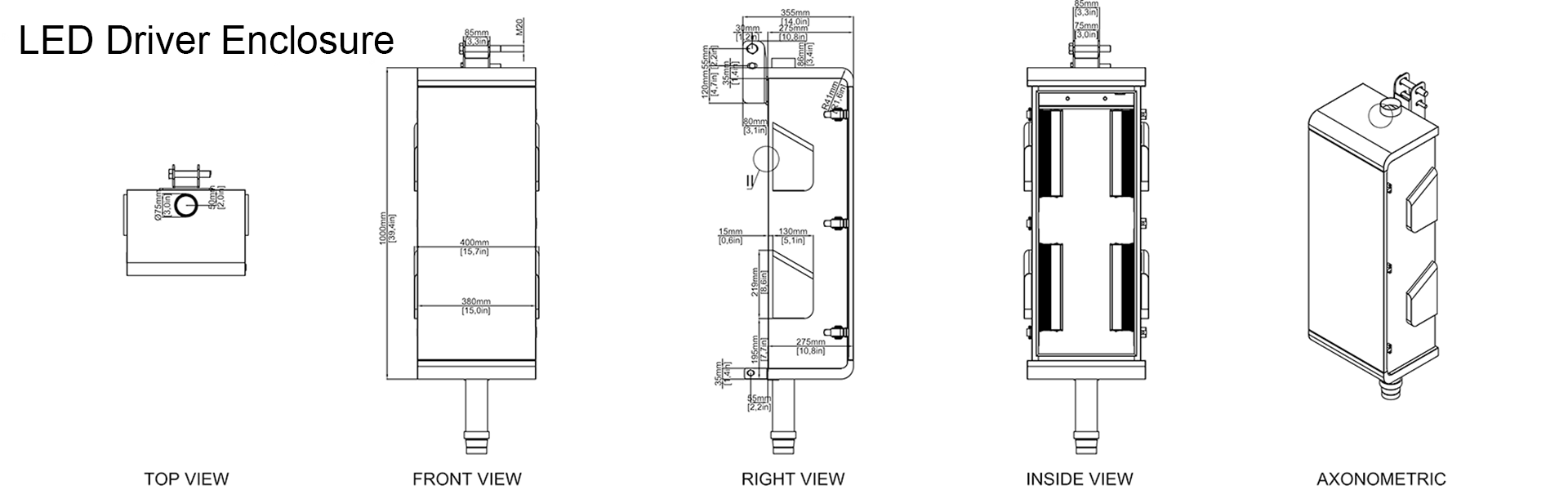

Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | VSP-XXXXW-12M-YP |
|---|---|
| System Wattage | 4200W |
| CRI | 70~95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (High Voltage) | 347~480VAC |
| Input Voltage (Low Voltage) | 110~277VAC |
| L70 Hours | 100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| L" × W" × H" | 15.7" x 14.0" x 39.4" / 400 x 355 x 1000 mm |
| Material | Stainless Steel 304 |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: VSP-4200W-12M-YP
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| VSP-4200W-12M-YP | 4200W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
S = Separated from Fixture |
Request a Sample
Experience the quality and performance of our VSP-XXXXW-12M-YP firsthand. Contact our team today for a free sample and technical consultation.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
Are SolarOne stadium lights flicker-free for broadcast?
Yes. Our VSP high-frequency drivers eliminate flicker, so footage stays clean even in super-slow-motion broadcast replays.
Do the luminaires meet sports federation playing standards?
The RT410 series is Olympic-grade and HDTV-ready, replacing 400–1000 W HID at 20–50 ft mounting heights at a fraction of the running cost. Every order ships with a photometric layout matched to your venue drawing.
Are the M Series modules field-replaceable?
Yes. The M Series is modular from 80 W to 1280 W, with field-replaceable modules that keep maintenance downtime short.
