RT410-RGBW 200W
The RT410-RGBW adds a 200 W RGBW colour engine to the RT410 floodlight platform, bringing saturated colour and tunable white to mid-size area lighting. Venues hold functional white for daily use and switch to branded colour washes for events, façade displays and festivals, all from one DMX, DALI or 1-10 V controller. The same IP66, surge-protected build as the white-light RT410 means the colour unit survives identical outdoor conditions, and pre-set scenes recall a logo or slow fade at the touch of a button. Ideal for concourses, retail fronts and landmark illumination where atmosphere matters as much as visibility, the RT410-RGBW ships with a photometric and control layout matched to your brief and mounting height.

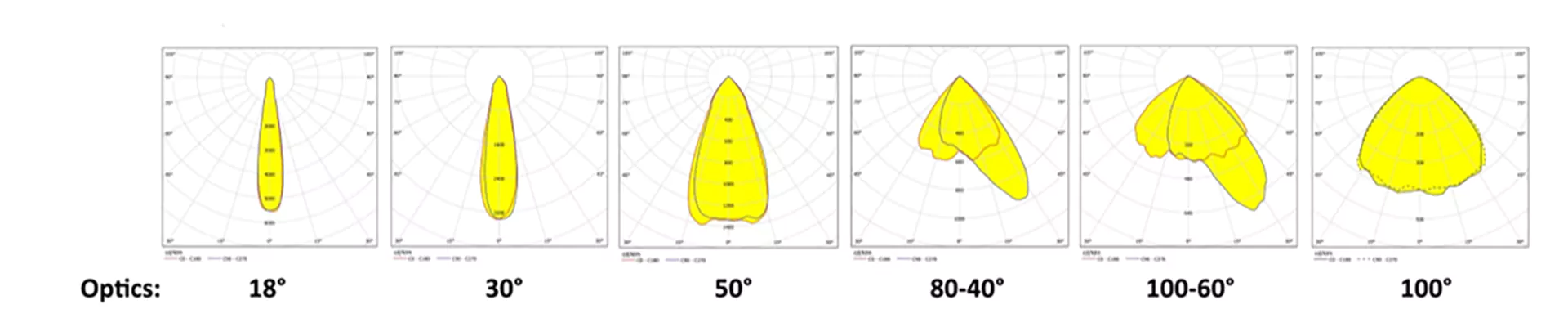

Beam Angle Type:

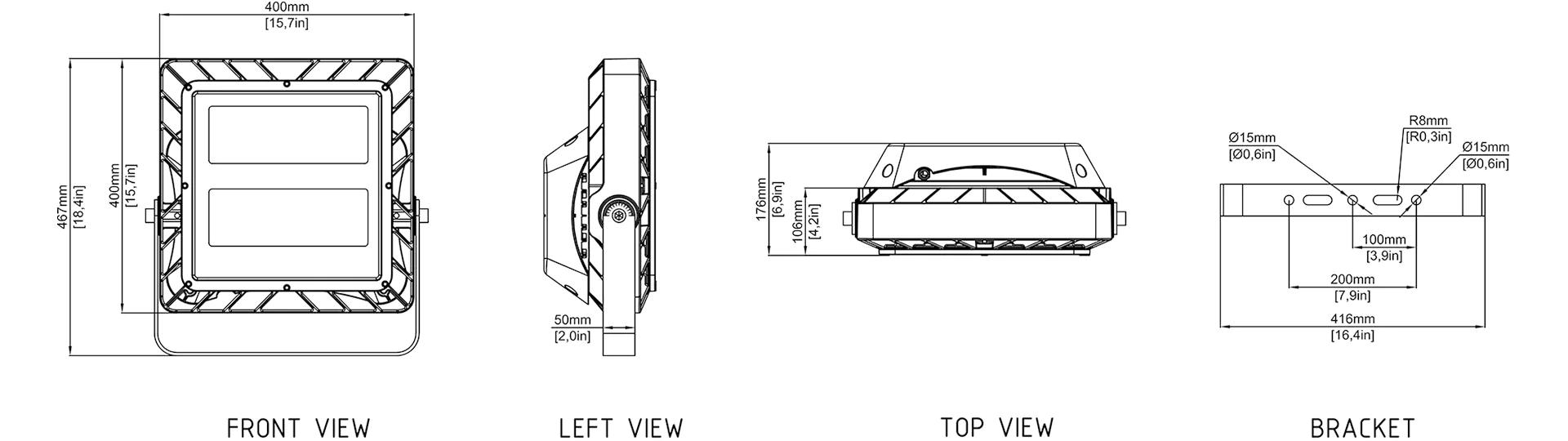

Dimensions:
ENERGY AND PERFORMANCE DATA:
| Series Name | RT410-RGBW |
|---|---|
| Lumen Output | 10,000lm |
| System Wattage | 200W |
| CRI | 70-95 |
| Color Temperature (Kevin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Input Voltage (High Voltage) | 347-480VAC |
| Input Voltage (Low Voltage) | 110-277VAC |
| L70 Hours | >100,000 at 25°C |
| Operating Temperature Range | -40°C to 55°C |
| Surge (Common Mode / Differential Mode) | 10kV |
| IP Rating | IP66 |
| Effective Projected Area (EPA) at 90° | 0.26 (sq. ft.) |
| L" × W" × H" | 15.8" X 15.8"X 4.2" / 418 X 400 X 172 (mm) |
| Approximate Weight | (30lbs)13.5kgs |
| Material | Aluminum / Glass |
| LED Driver | Inventronics Or Equal |
ORDERING INFORMATION:
Model Number: RT410-RGBW
Swipe to view all columns →
| Series Name | System Power | CCT | Input Voltage | Beam Angle | Finish (option) | Dimming (option) | Bracket Type (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| RT410-RGBW | 200W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI |
U = Hang Mount Bracket L = Sitting Mount Bracket |
Request a Sample
Experience the quality and performance of our RT410-RGBW firsthand. Contact our team today for a free sample and technical consultation.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
