VSP-XXXXW-12M-YP 4200W
Système de protection anti-stroboscope pour sites de diffusion. Élimine le scintillement des ralentis grâce à une technologie de commande haute fréquence stable.
Type d'angle de faisceau:

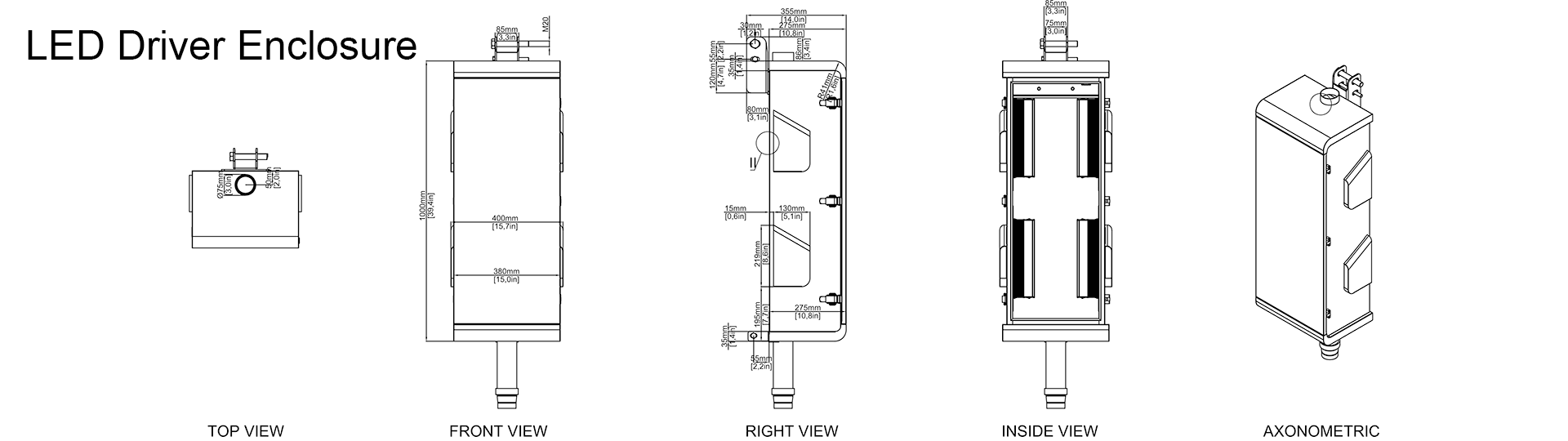

Dimensions:
DONNÉES D'ÉNERGIE ET DE PERFORMANCE:
| Nom de la série | VSP-XXXXW-12M-YP |
|---|---|
| Puissance du système | 4200W |
| IRC | 70~95 |
| Température de couleur (Kelvin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Tension d'entrée (Haute tension) | 347~480VAC |
| Tension d'entrée (Basse tension) | 110~277VAC |
| Heures L70 | 100,000 at 25°C |
| Plage de températures de fonctionnement | -40°C to 55°C |
| Surtension (Mode commun / Mode différentiel) | 10kV |
| Indice IP | IP66 |
| L" × L" × H" | 15.7" x 14.0" x 39.4" / 400 x 355 x 1000 mm |
| Matériau | Stainless Steel 304 |
| Driver LED | Inventronics Or Equal |
INFORMATIONS DE COMMANDE:
Numéro de modèle: VSP-4200W-12M-YP
Swipe to view all columns →
| Nom de la série | Puissance du système | CCT | Input Voltage | Angle de faisceau | Finish (option) | Dimming (option) | Type de support (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| VSP-4200W-12M-YP | 4200W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
S = Separated from Fixture |
Demander un échantillon
Découvrez la qualité et les performances de notre VSP-XXXXW-12M-YP par vous-même. Contactez notre équipe dès aujourd'hui pour un échantillon gratuit et une consultation technique.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
Are SolarOne stadium lights flicker-free for broadcast?
Yes. Our VSP high-frequency drivers eliminate flicker, so footage stays clean even in super-slow-motion broadcast replays.
Do the luminaires meet sports federation playing standards?
The RT410 series is Olympic-grade and HDTV-ready, replacing 400–1000 W HID at 20–50 ft mounting heights at a fraction of the running cost. Every order ships with a photometric layout matched to your venue drawing.
Are the M Series modules field-replaceable?
Yes. The M Series is modular from 80 W to 1280 W, with field-replaceable modules that keep maintenance downtime short.
