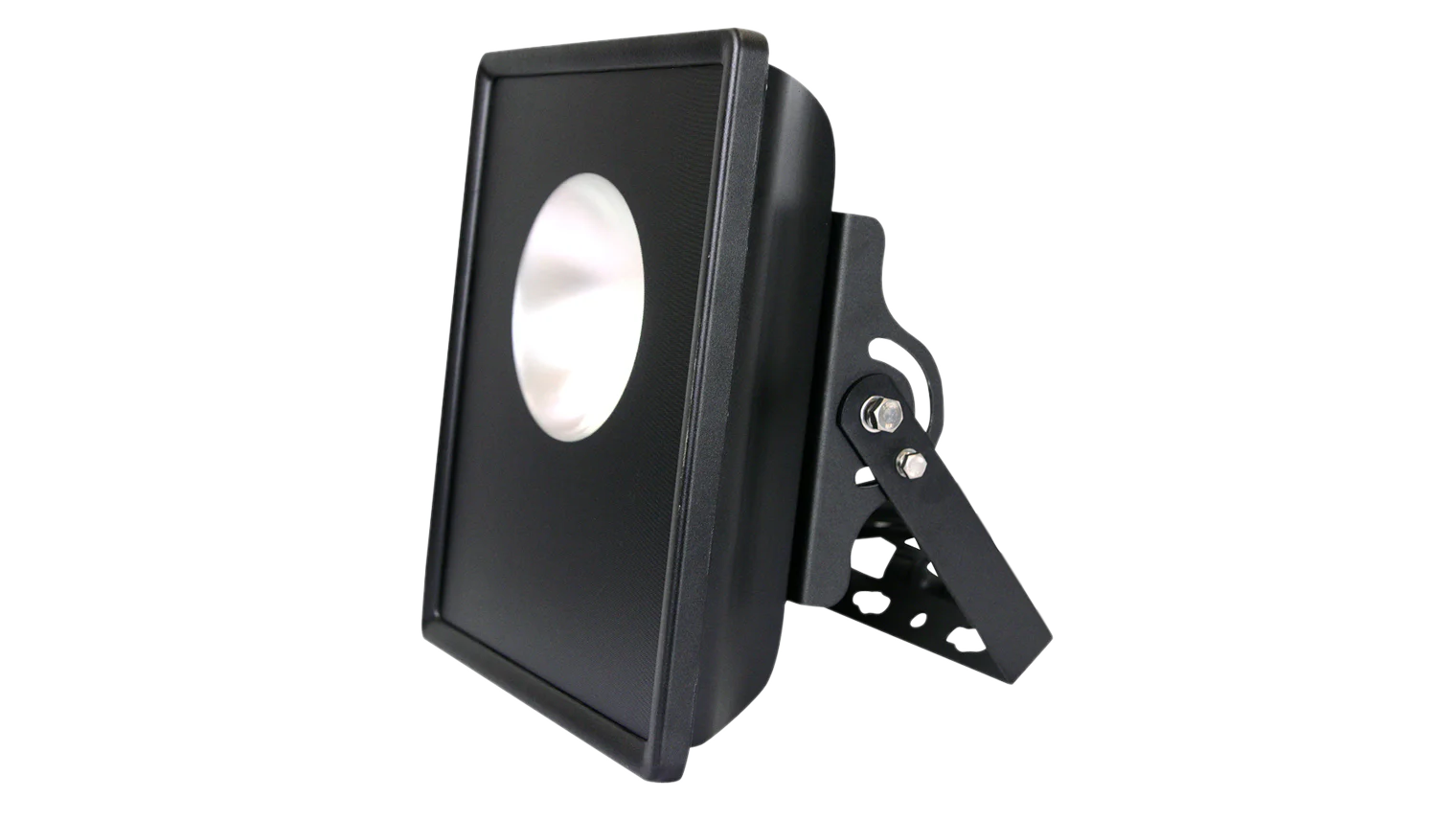

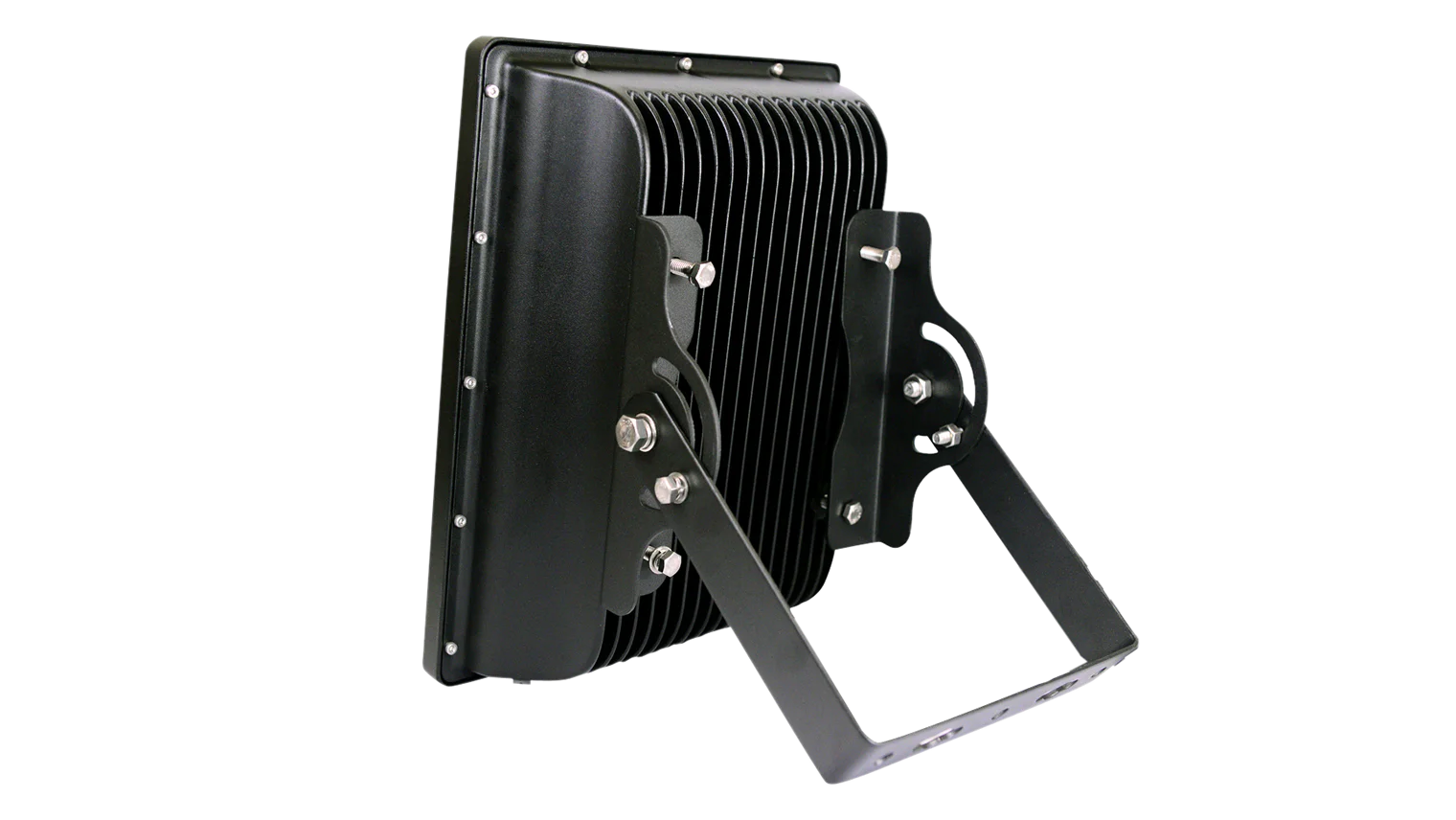

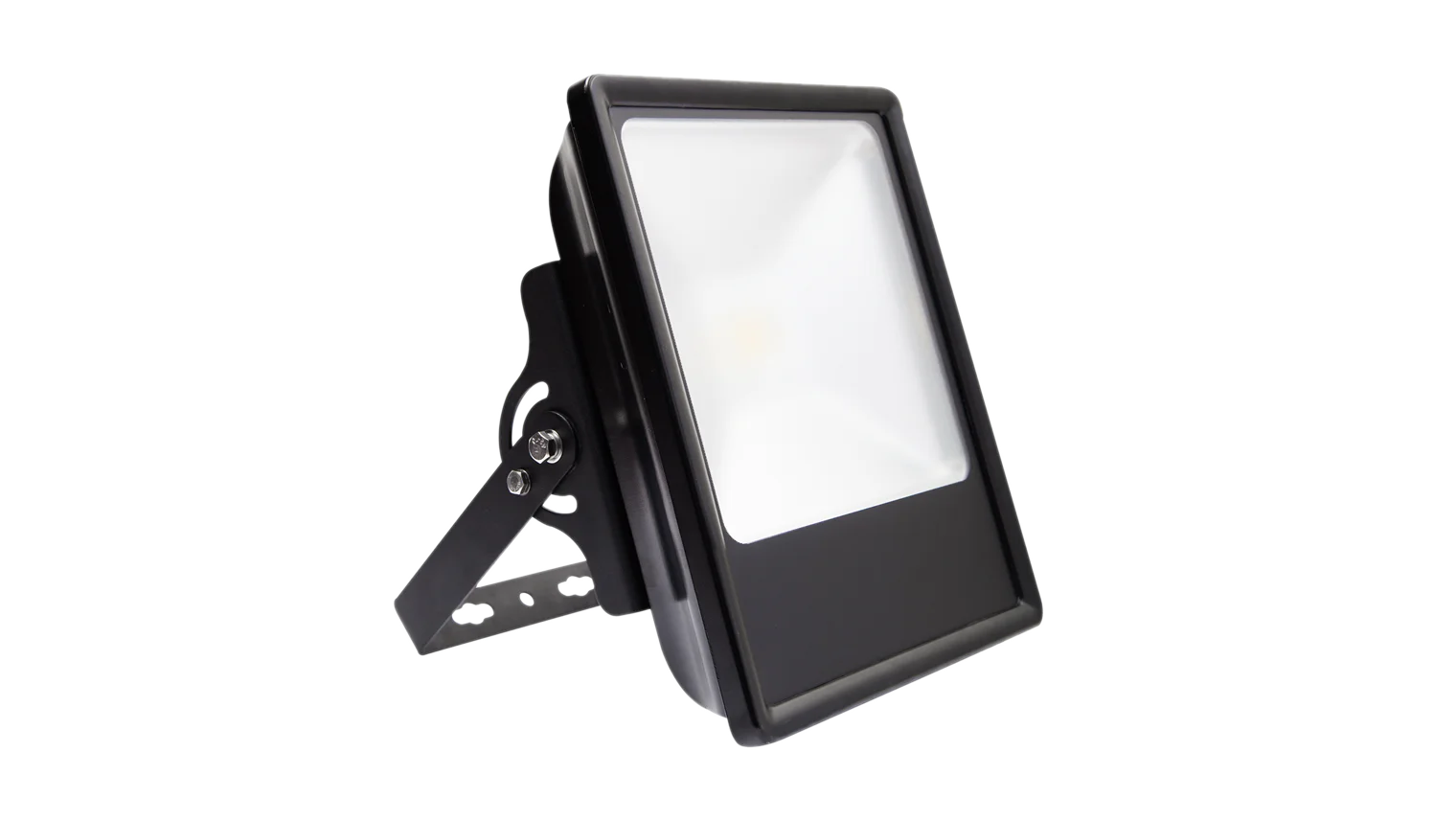

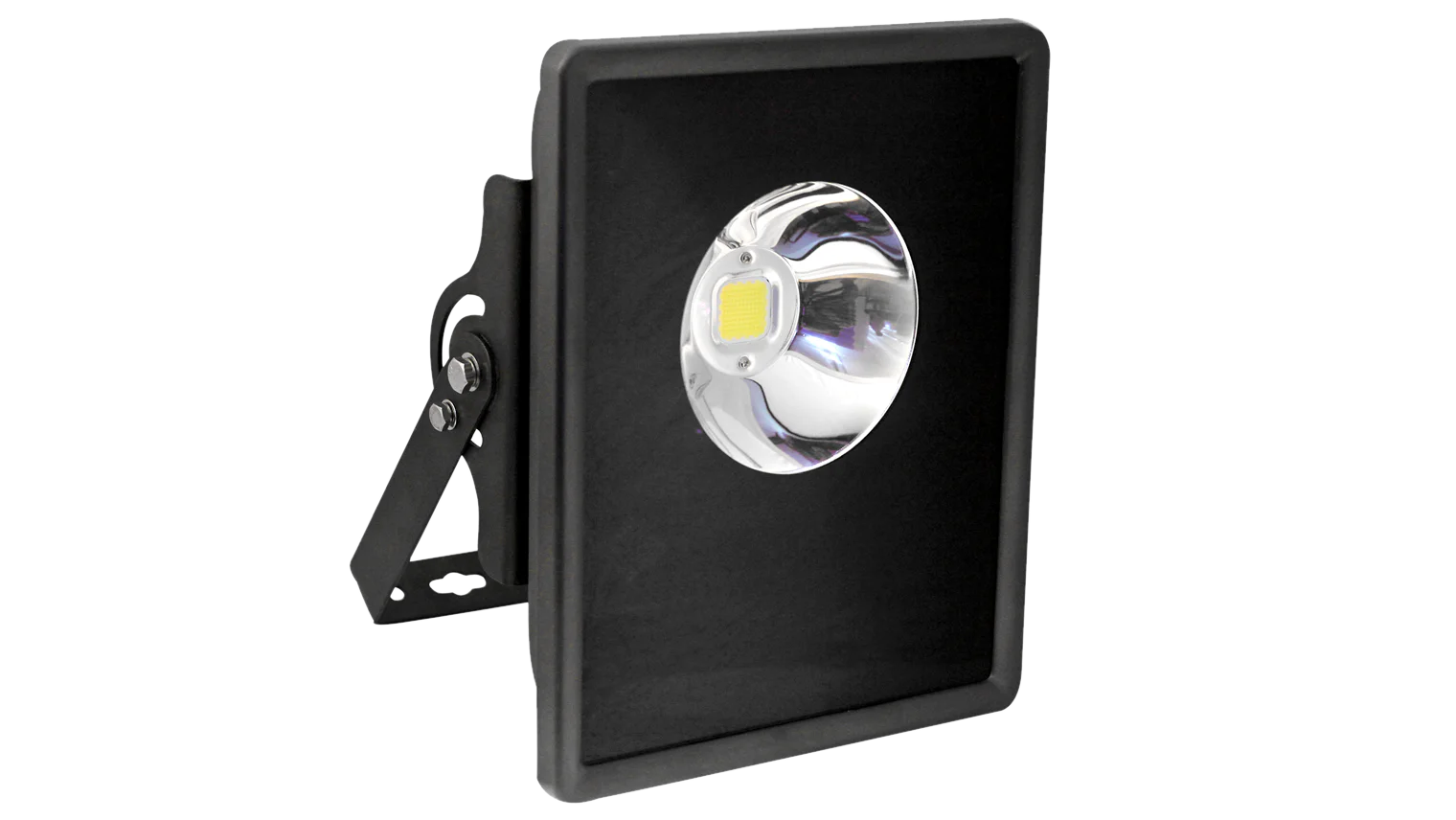

RT390FL-S 80W
The RT390FL-S is an 80 W LED floodlight for smaller floodlighting tasks: building entrances, signage, bin stores, perimeter paths and compact yards. Its efficient optical design and IP66 protection suit permanent outdoor use, while a 10 kV surge suppressor protects against transients and the -40 °C to +55 °C range covers most climates. The adjustable bracket simplifies aiming, and the compact die-cast body mounts cleanly on walls, poles and soffits. As the smallest member of the RT floodlight family it shares the bracket platform with higher-wattage RT models, so a site can scale up later without changing poles or hardware. Every RT390FL-S order ships with a photometric layout matched to your drawing so you meet target lux without over-lighting.
Type d'angle de faisceau:
Dimensions:
DONNÉES D'ÉNERGIE ET DE PERFORMANCE:
| Nom de la série | RT390FL-S |
|---|---|
| Flux lumineux | >10,400lm |
| Puissance du système | 80W |
| IRC | 70-95 |
| Température de couleur (Kelvin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Tension d'entrée (Haute tension) | 347-480VAC |
| Tension d'entrée (Basse tension) | 110-277VAC |
| Heures L70 | >100,000 at 25°C |
| Plage de températures de fonctionnement | -40°C to 55°C |
| Surtension (Mode commun / Mode différentiel) | 10kV |
| Indice IP | IP66 |
| L" × L" × H" | 369 x 294 x 336 mm |
| Poids approximatif | (18.7 lbs) 8.5 kgs |
| Matériau | Aluminum / Glass |
| Marque de LED | Bridgelux |
| Driver LED | Inventronics Or Equal |
INFORMATIONS DE COMMANDE:
Numéro de modèle: RT390FL-80W
Swipe to view all columns →
| Nom de la série | Puissance du système | CCT | Input Voltage | Angle de faisceau | Finish (option) | Dimming (option) | Type de support (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| RT390FL | 80W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
120=120° 30=30° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket |
Demander un échantillon
Découvrez la qualité et les performances de notre RT390FL-S par vous-même. Contactez notre équipe dès aujourd'hui pour un échantillon gratuit et une consultation technique.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
