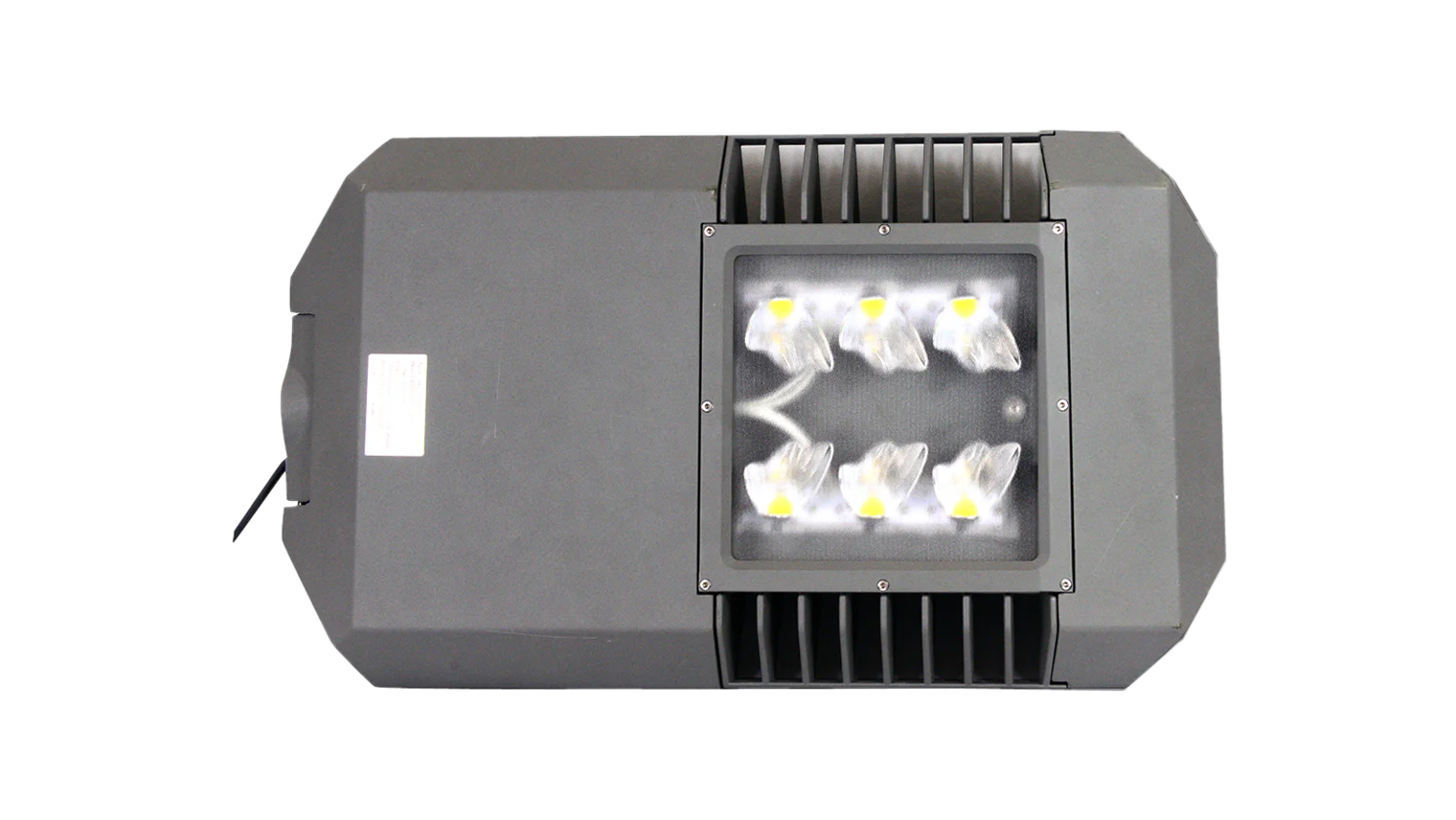

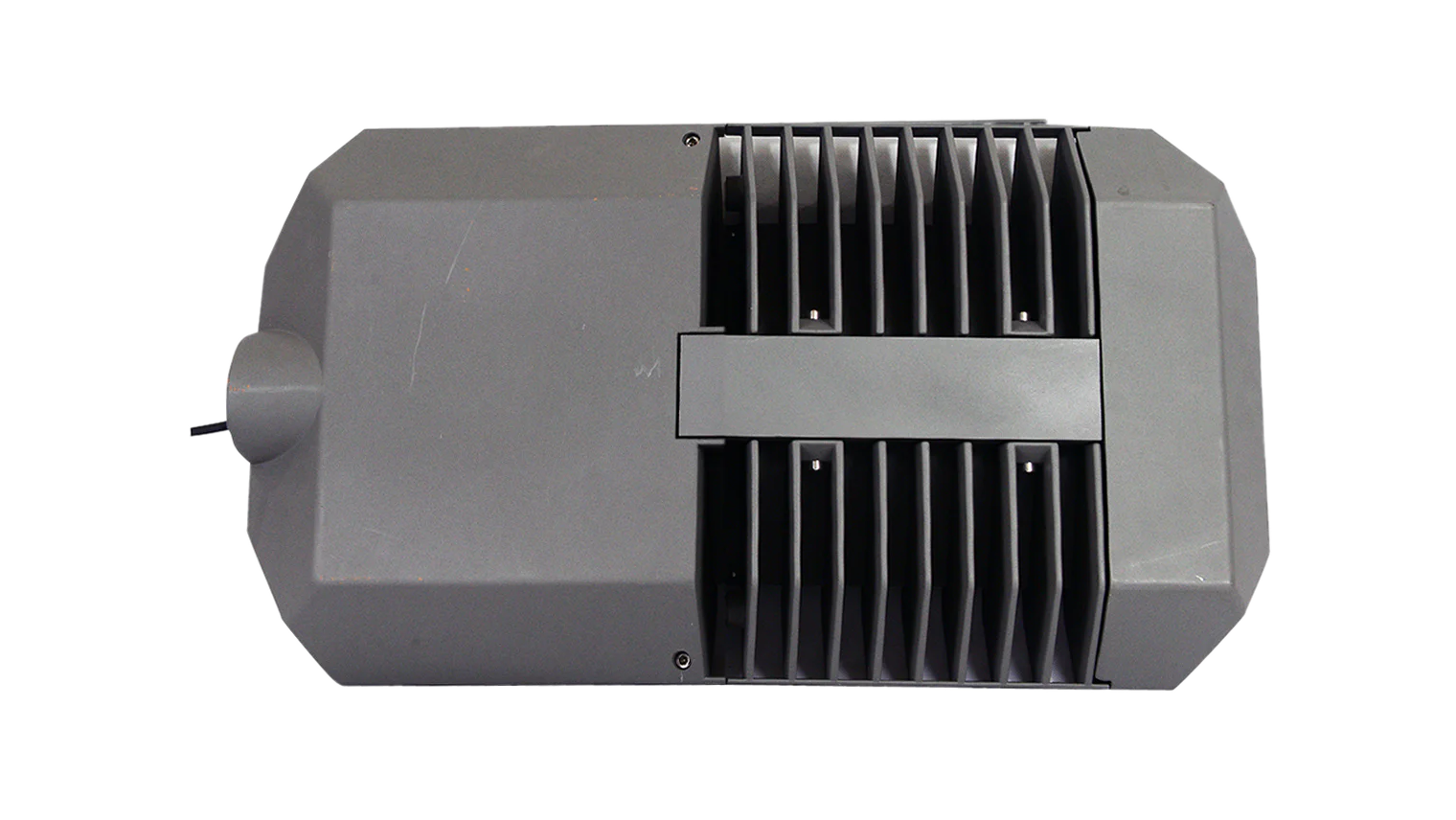

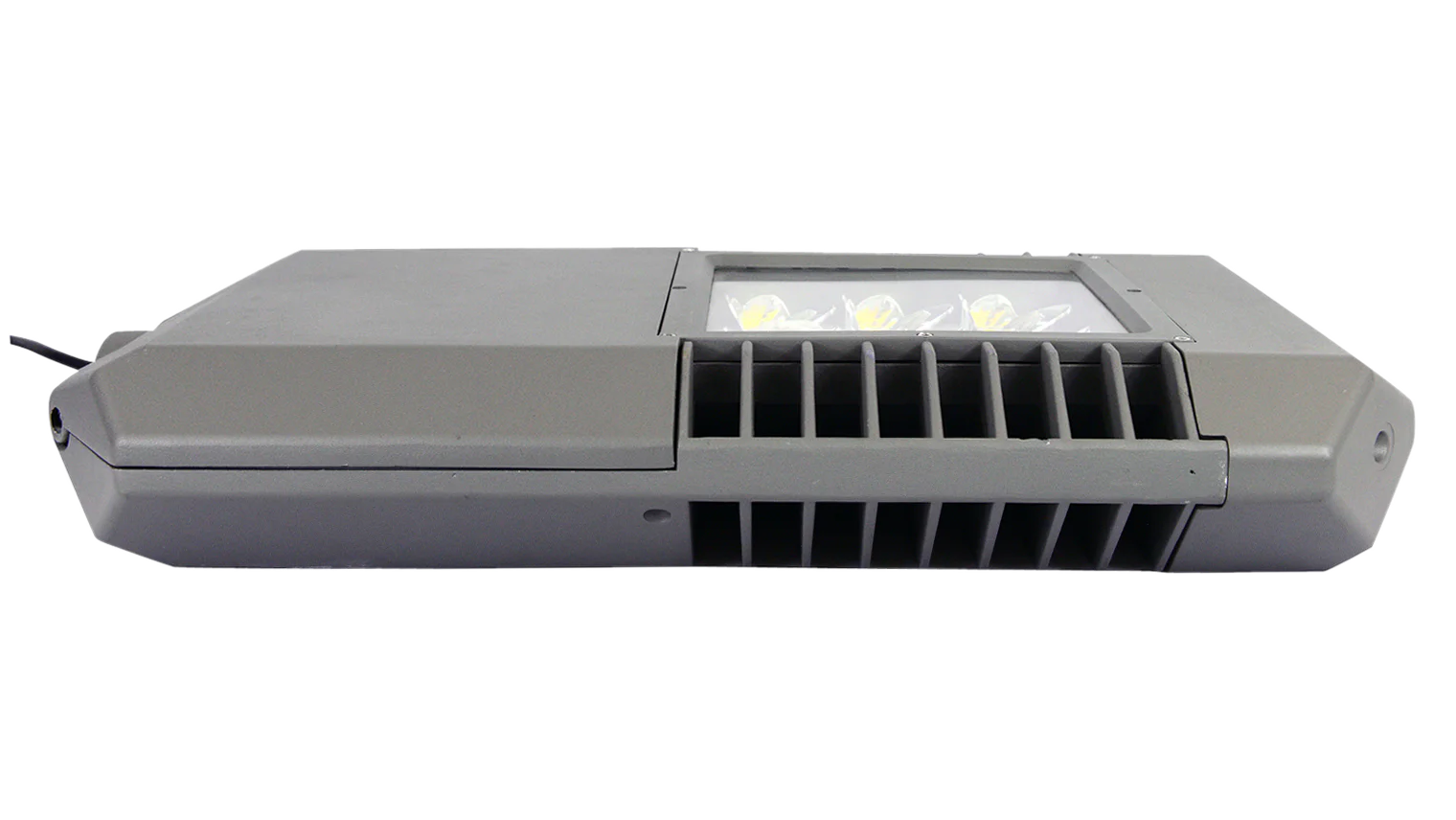

RT600SL-T 120W
The RT600SL-T is a 120 W LED street-light luminaire with an asymmetric 70° × 140° distribution engineered for roads, paths and car parks. The shaped optic puts light on the carriageway and walkway rather than into windows or the sky, improving uniformity and cutting glare for drivers and residents. IP66 protection and a 10 kV surge suppressor suit permanent pole-top duty, and the -40 °C to +55 °C range covers most climates. Sharing the SolarOne build language, the RT600SL-T pairs with the RT820SL-T on one bracket platform so a corridor can mix wattages by zone. Every order includes a photometric layout matched to your road geometry and target lux, helping you cut energy use versus legacy HID while meeting lighting standards.
Type d'angle de faisceau:
Dimensions:
DONNÉES D'ÉNERGIE ET DE PERFORMANCE:
| Nom de la série | RT600SL-T-120W |
|---|---|
| Flux lumineux | >14,400 lm |
| Puissance du système | 120W |
| IRC | 70~95 |
| Température de couleur (Kelvin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Tension d'entrée (Haute tension) | 347~480VAC |
| Tension d'entrée (Basse tension) | 110~277VAC |
| Heures L70 | 100,000 at 25°C |
| Plage de températures de fonctionnement | -40°C to 55°C |
| Surtension (Mode commun / Mode différentiel) | 10kV |
| Indice IP | IP66 |
| L" × L" × H" | 23.5" x 13.8" x 3.9" / 596 x 350 x 100mm |
| Poids approximatif | ( 27.6 lbs) 12.5 kgs |
| Matériau | Aluminum / Glass |
| Marque de LED | Bridgelux |
| Driver LED | Inventronics Or Equal |
INFORMATIONS DE COMMANDE:
Numéro de modèle: RT600SL-T
Swipe to view all columns →
| Nom de la série | Puissance du système | CCT | Input Voltage | Angle de faisceau | Finish (option) | Dimming (option) | Type de support (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| RT600SL-T | 120W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
70140=70°x 140° | GRY=Grey BLK=Black |
1.0-10V 2. Photocell 3. PLC 4.Zigbee |
Demander un échantillon
Découvrez la qualité et les performances de notre RT600SL-T par vous-même. Contactez notre équipe dès aujourd'hui pour un échantillon gratuit et une consultation technique.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
What mounting height are these luminaires designed for?
The high-bay and low-bay series cover the 30–90° beam family used from warehouses and sports halls up to high-bay applications, and the roadway series ships with an asymmetric 70° × 140° distribution for street lighting.
Can you match an existing installation footprint?
Yes — send us the existing photometric report or IES file and we will confirm whether the same mounting positions and aiming angles work, or supply a replacement layout.
How do I order the right configuration?
Every ordering code follows the same pattern: series name, system wattage, CCT, input voltage, beam angle, finish, dimming and bracket. The ordering table on this page lists every option for this model.
