FL16M 1280W
The FL16M is the flagship of the FL floodlight family, rated 1280 W and delivering over 160,000 lumens at 130 lm/W with a controlled 18° to 50° beam for the most demanding high-mast and stadium applications. The narrow optic throws light far and evenly across large surfaces while holding spill away from surrounding roads and properties, and IP66 protection with a 10 kV surge suppressor suits year-round outdoor service. As the top of the shared FL bracket and optic platform, the FL16M scales down to the 80 W FL1M on one common spare-parts set across an entire campus. A flicker-free driver meets broadcast-grade needs, and each order includes a photometric layout matched to your venue.
Type d'angle de faisceau:

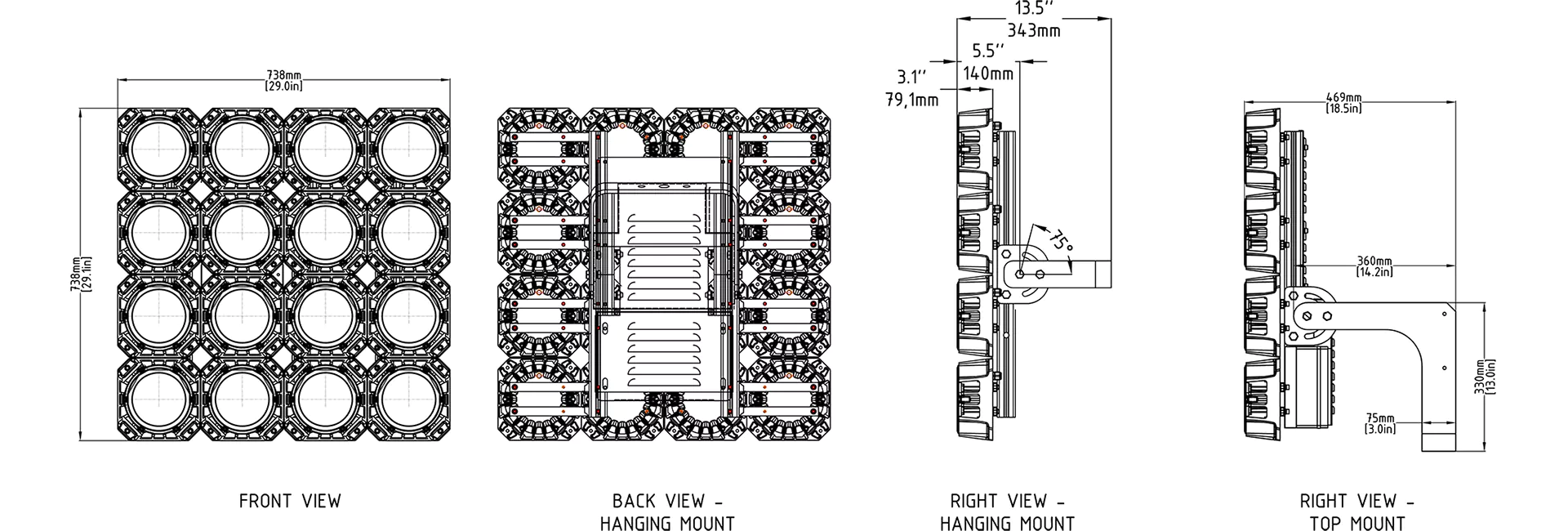

Dimensions:
DONNÉES D'ÉNERGIE ET DE PERFORMANCE:
| Nom de la série | FL16M-1280W |
|---|---|
| Flux lumineux | 166,400 lm Typ. |
| Puissance du système | 1280W |
| IRC | 70~95 |
| Température de couleur (Kelvin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Tension d'entrée (Haute tension) | 347~480VAC |
| Tension d'entrée (Basse tension) | 110~277VAC |
| Heures L70 | 100,000 at 25°C |
| Plage de températures de fonctionnement | -40°C to 55°C |
| Surtension (Mode commun / Mode différentiel) | 10kV |
| Indice IP | IP66 |
| Surface projetée effective (EPA) à 90° | 4.16 (sq. ft.) |
| L" × L" × H" | 29" X 29 "X 8.1"/738*738*343mm |
| Poids approximatif | ( 94.5lbs)42.5 kgs |
| Matériau | Aluminum / Glass |
| Marque de LED | Bridgelux |
| Driver LED | Inventronics Or Equal |
INFORMATIONS DE COMMANDE:
Numéro de modèle: FL16M-1280W-30K-H
Swipe to view all columns →
| Nom de la série | Puissance du système | CCT | Input Voltage | Angle de faisceau | Finish (option) | Dimming (option) | Type de support (option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| FL16M (Light With 16 Module) | 1280W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
Demander un échantillon
Découvrez la qualité et les performances de notre FL16M par vous-même. Contactez notre équipe dès aujourd'hui pour un échantillon gratuit et une consultation technique.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
