FL9M 720W

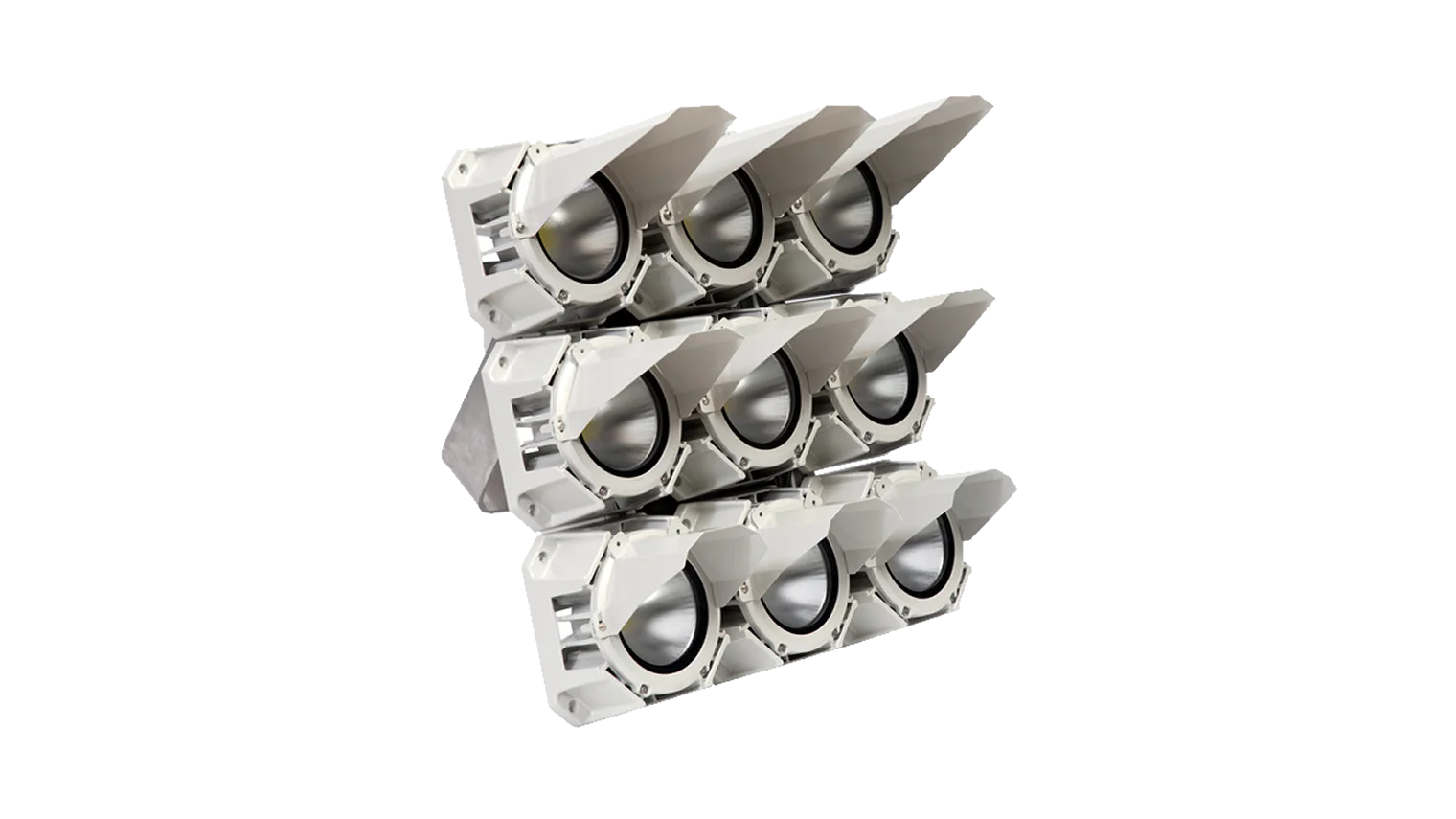

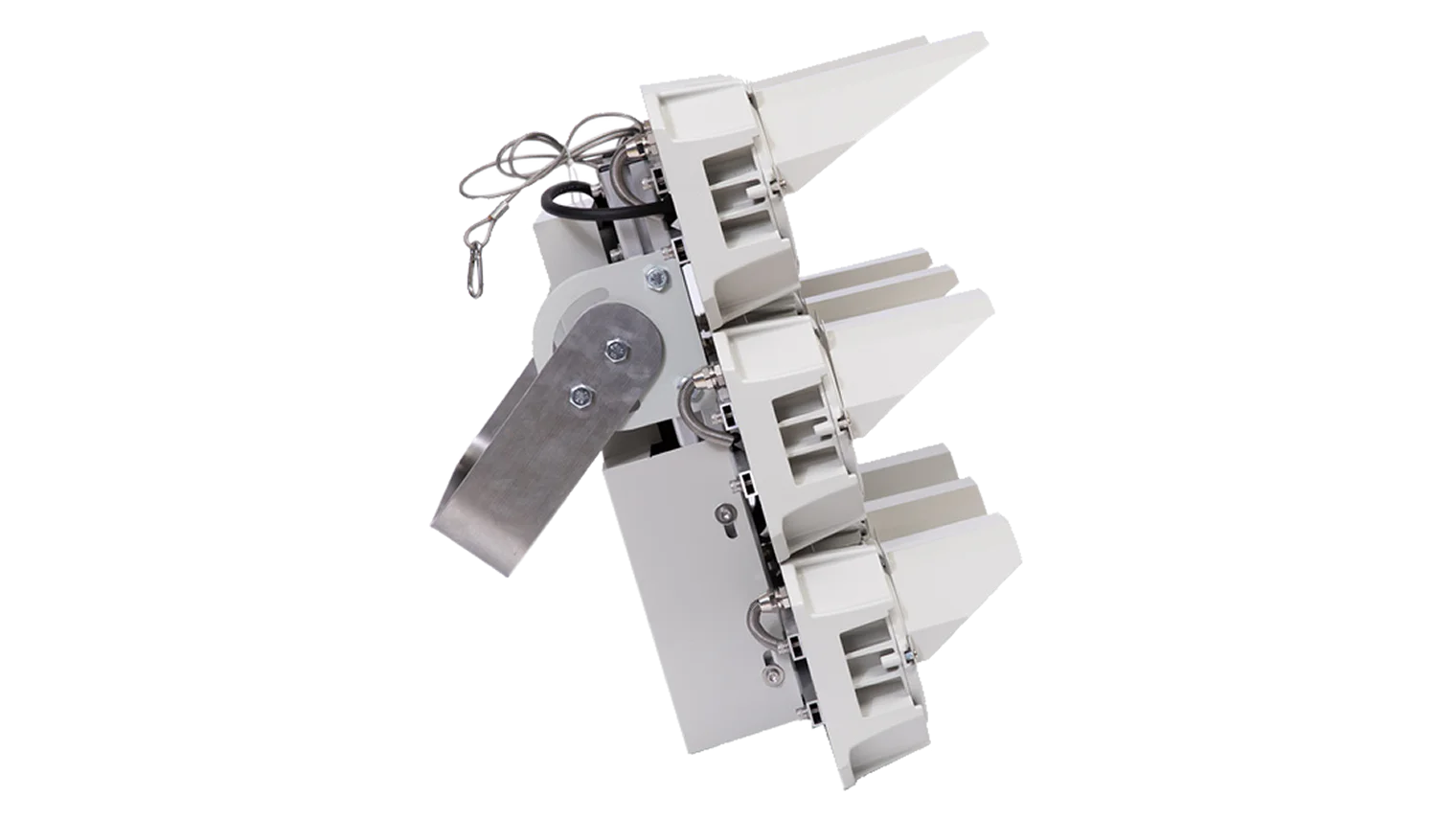

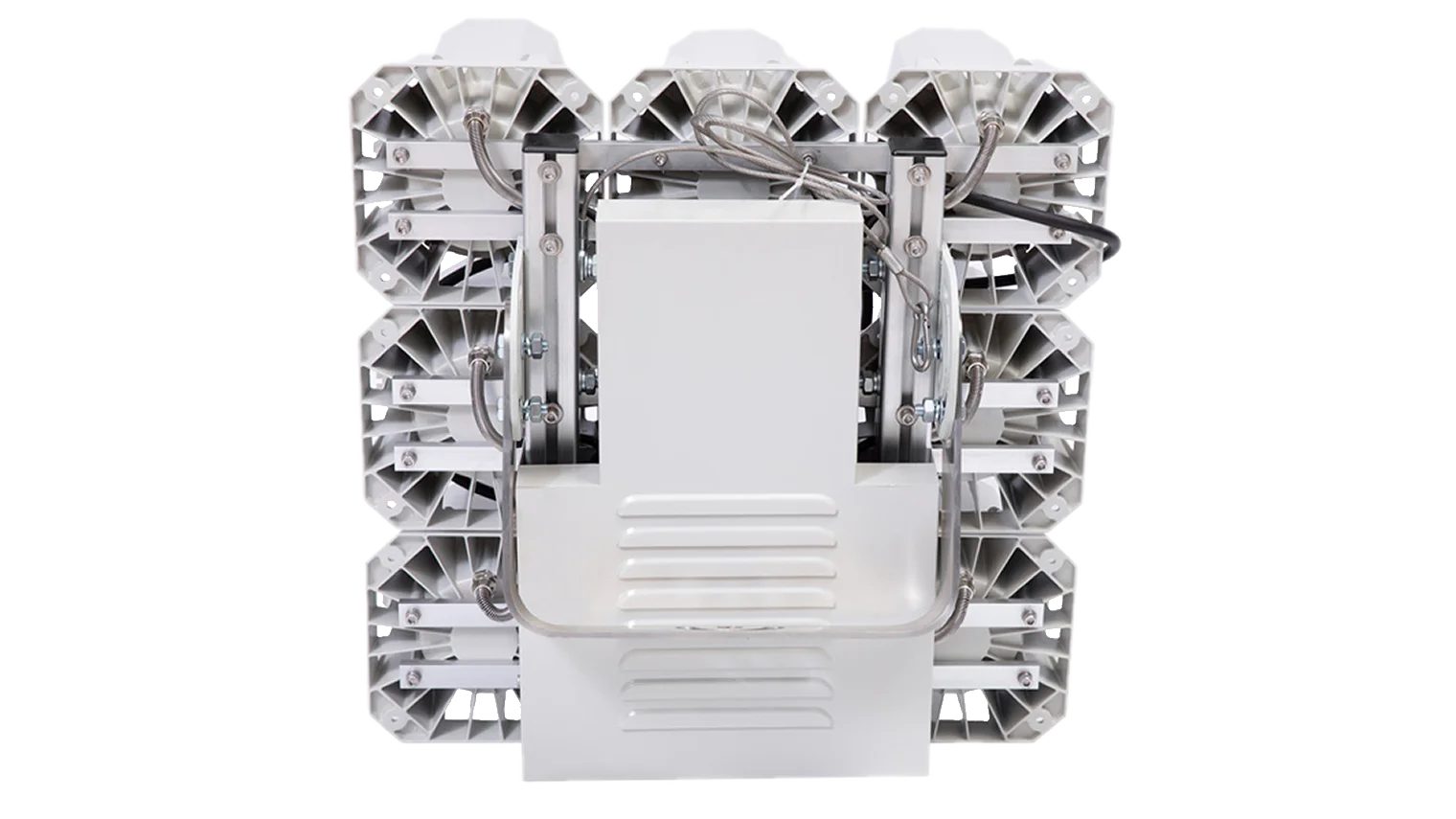

The FL9M is a 720 W LED floodlight delivering over 90,000 lumens at 130 lm/W, with a controlled 18° to 50° beam built for large container yards, railyards and stadium perimeters. The narrow optic places light exactly where it is needed, improving uniformity and cutting spill onto adjacent properties, while IP66 protection and a 10 kV surge suppressor suit continuous outdoor service. On the shared FL bracket and optic platform the FL9M sits between the 480 W FL6M and the 1000 W FL12M, letting a port or depot standardise one spare-parts set across every wattage. A flicker-free driver supports broadcast-grade venues, and each order includes a photometric layout matched to your drawing and target illuminance.
Тип угла луча:
Габариты:
ДАННЫЕ ОБ ЭНЕРГИИ И ПРОИЗВОДИТЕЛЬНОСТИ:
| Название серии | FL9M-720W |
|---|---|
| Световой поток | 93,600lm Typ. |
| Мощность системы | 720W |
| CRI | 70~95 |
| Цветовая температура (Кельвин) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Входное напряжение (Высокое) | 347~480VAC |
| Входное напряжение (Низкое) | 110~277VAC |
| Часы L70 | 100,000 at 25°C |
| Диапазон рабочих температур | -40°C to 55°C |
| Перенапряжение (Синфазное / Дифференциальное) | 10kV |
| Класс защиты IP | IP66 |
| Эффективная площадь проекции (EPA) при 90° | 2.37 (sq. ft.) |

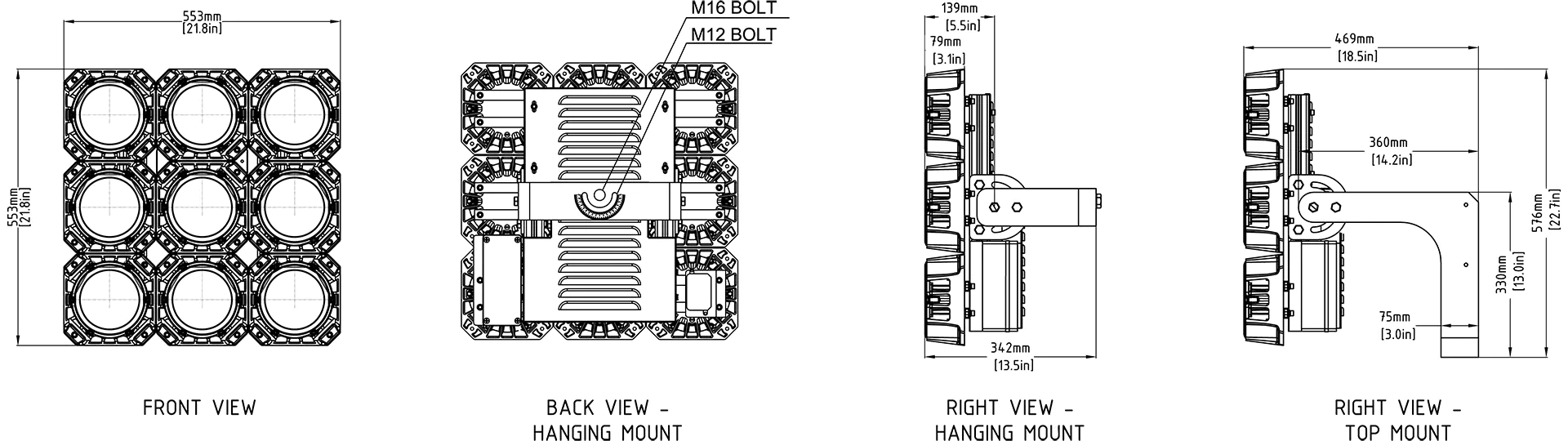

| Д" × Ш" × В" | 21.8" X 21.8"X 8.1"/553*553*343mm |
| Приблизительный вес | ( 58lbs)26.0 kgs |
| Материал | Aluminum / Glass |
| Марка LED | Bridgelux |
| LED-драйвер | Inventronics Or Equal |
ИНФОРМАЦИЯ ДЛЯ ЗАКАЗА:
Номер модели: FL9M-720W-XXK-S
Swipe to view all columns →
| Название серии | Мощность системы | CCT | Input Voltage | Угол излучения | Finish (option) | Dimming (option) | Тип кронштейна (опция) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| FL9M (Light With 9 Module) | 720W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
Запросить образец
Ознакомьтесь с качеством и производительностью нашей FL9M продукции лично. Свяжитесь с нашей командой сегодня для получения бесплатного образца и технической консультации.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
