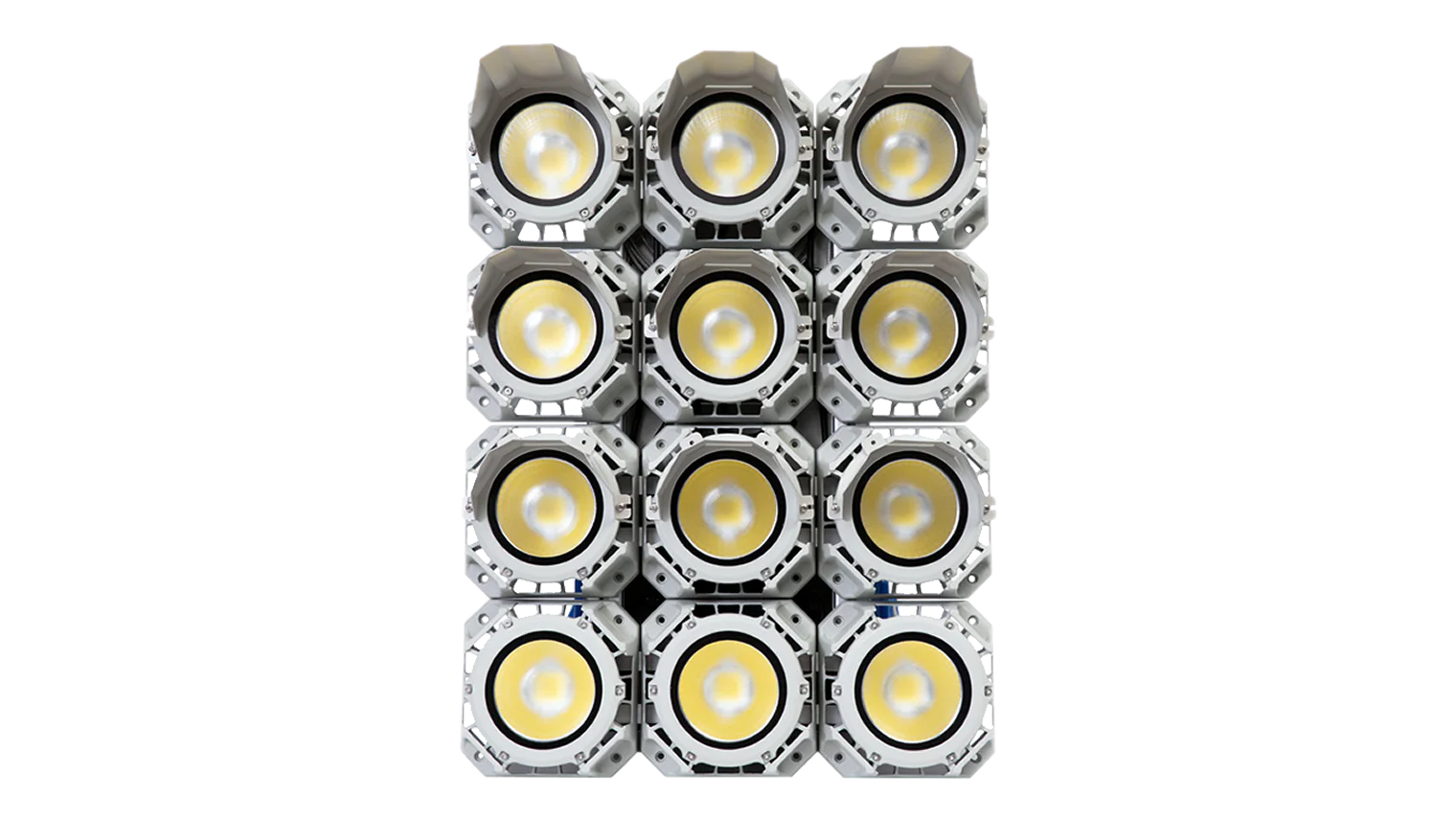

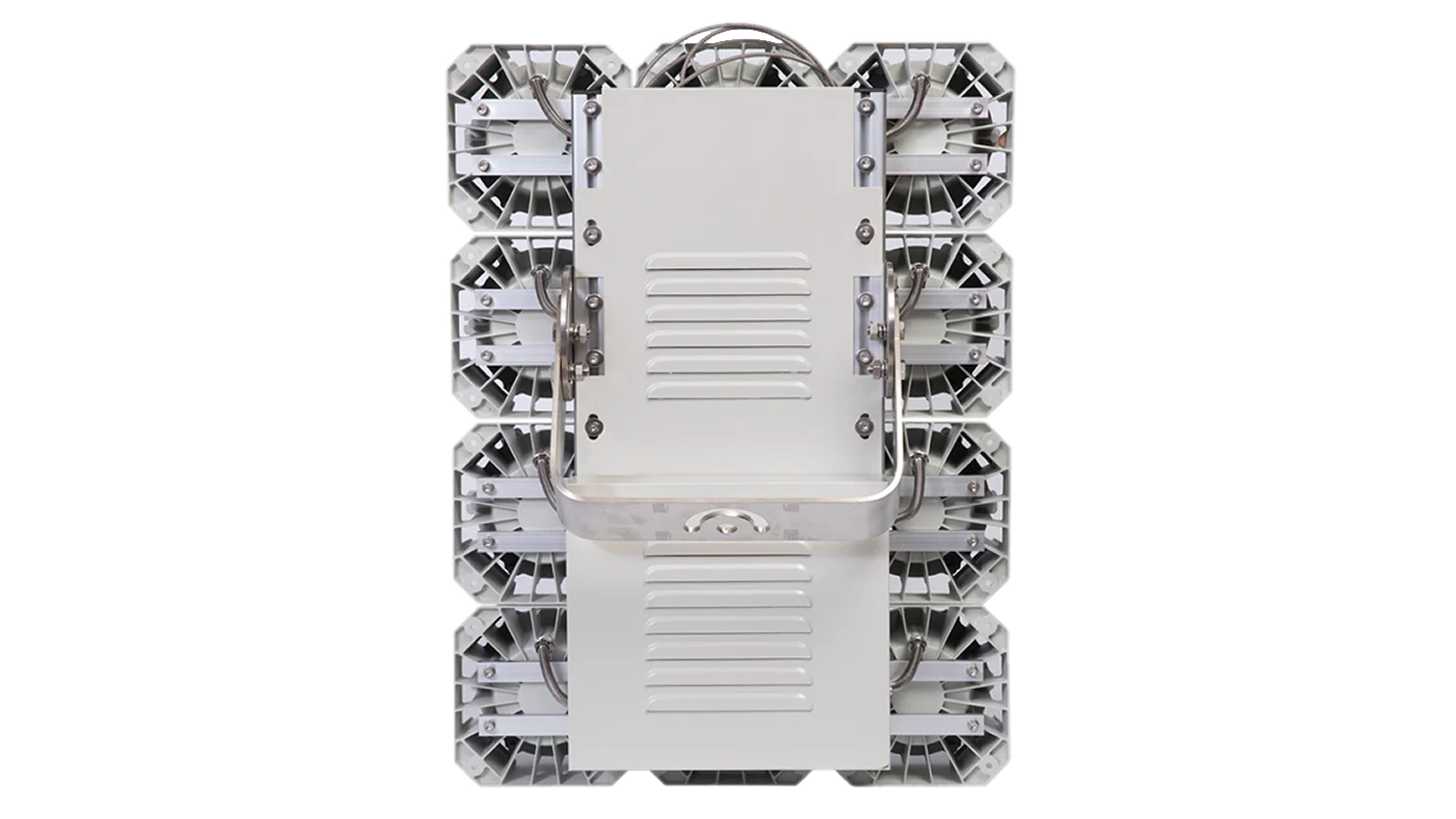

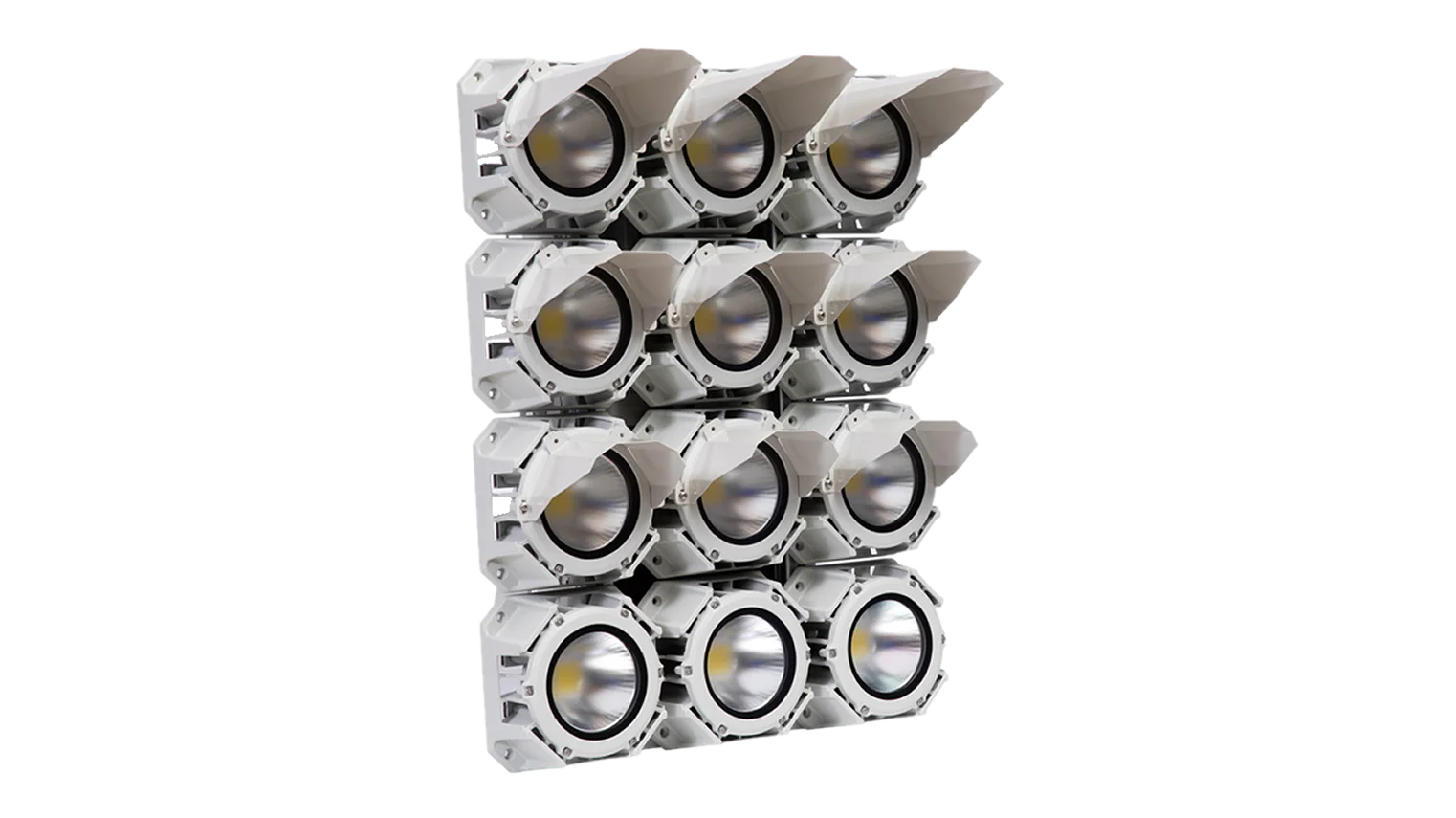

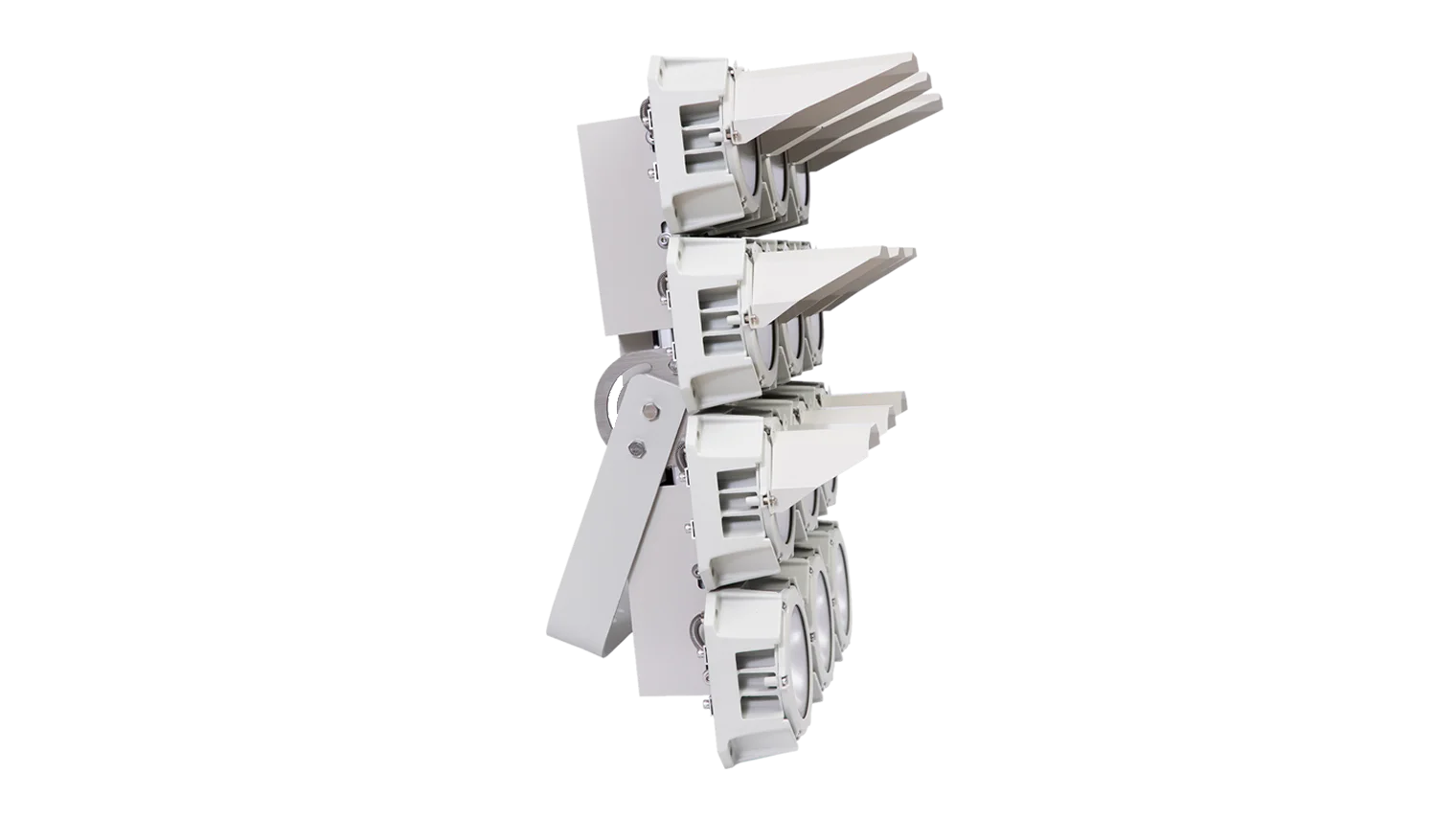

FL12M 1000W
The FL12M is a 1000 W LED floodlight producing more than 120,000 lumens at 130 lm/W, with a controlled 18° to 50° beam for the largest yards, ports and stadium floodlighting briefs. Its narrow optic maximises reach and uniformity on tall poles while limiting spill onto neighbours, and IP66 protection with a 10 kV surge protector handles permanent outdoor duty in harsh climates. Building on the shared FL bracket and optic platform, the FL12M scales from the 80 W FL1M to the 1280 W FL16M on a single spare-parts set across a site. A flicker-free driver supports broadcast environments, and every order ships with a photometric layout matched to your venue drawing and target lux levels.
Тип угла луча:
Габариты:
ДАННЫЕ ОБ ЭНЕРГИИ И ПРОИЗВОДИТЕЛЬНОСТИ:
| Название серии | FL12M-960W |
|---|---|
| Световой поток | 124,800 lm Typ. |
| Мощность системы | 1000W |
| CRI | 70~95 |
| Цветовая температура (Кельвин) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Входное напряжение (Высокое) | 347~480VAC |
| Входное напряжение (Низкое) | 110~277VAC |
| Часы L70 | 100,000 at 25°C |
| Диапазон рабочих температур | -40°C to 55°C |
| Перенапряжение (Синфазное / Дифференциальное) | 10kV |
| Класс защиты IP | IP66 |
| Эффективная площадь проекции (EPA) при 90° | 3.16 (sq. ft.) |
| Д" × Ш" × В" | 21.8" X 29.1"X 8.1"/553*737.90*343mm |
| Приблизительный вес | ( 59lbs)33.0 kgs |
| Материал | Aluminum / Glass |
| Марка LED | Bridgelux |
| LED-драйвер | Inventronics Or Equal |
ИНФОРМАЦИЯ ДЛЯ ЗАКАЗА:
Номер модели: FL12M-1000W-YYK-H-30
Swipe to view all columns →
| Название серии | Мощность системы | CCT | Input Voltage | Угол излучения | Finish (option) | Dimming (option) | Тип кронштейна (опция) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| FL12M (Light With 12 Module) | 1000W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
Запросить образец
Ознакомьтесь с качеством и производительностью нашей FL12M продукции лично. Свяжитесь с нашей командой сегодня для получения бесплатного образца и технической консультации.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
