Tennis Court Lighting

Tennis Court Lighting

A tennis court needs even light without glare in the players’ eyes — the ball moves fast and low. SolarOne builds for both: broadcast-grade VSP floodlights for competition show courts, and modular LED floods from 80 W to 1280 W for club, university and community courts.

Tennis Court Floodlights

Two platforms cover the court: the RT410 series — tunable white and RGBW for show courts and club venues — and the M Series modular flood for training and community courts.

/01Area and Site
RT410 Series — LED Stadium Light

RT410 Series

Professional LED floodlights designed for sports fields, arenas, and large-area illumination. Flicker-free drivers with broadcast-grade performance.

260WPower
130lm/WEfficacy
32500+lmOutput
/02Area and Site
M Series — LED Area & Site Lighting

M Series

Truly modular design — scalable from a single 1M (80W) module up to 16M (1280W) or beyond. Flexible combination configurations to precisely match any project requirement.

80~1280W+Power
130lm/WEfficacy

Choosing the Right Output

Three numbers decide a tennis package: the target lux on the court, the pole height, and whether the court is indoor or outdoor. This is the range our delivered tennis projects actually use.

Venue type Typical fixture Distribution Mounting
Competition court, televised VSP-XXXXW-9M-YP, 4200 W 12 / 18 / 30 / 50° Pole, 12–18 m
Club / training court FL6M, 480 W 12 / 18 / 30 / 50° Pole, 8–12 m
Indoor tennis centre RT400HB / RT410, 130–260 W 60 / 90 / 120° Ceiling, 8–12 m
Padel / pickleball court FL4M, 320 W Asymmetric, low glare Pole, 6–8 m

Full photometric data, IES files and DIALux reports are supplied on request — send the court drawing and pole positions.

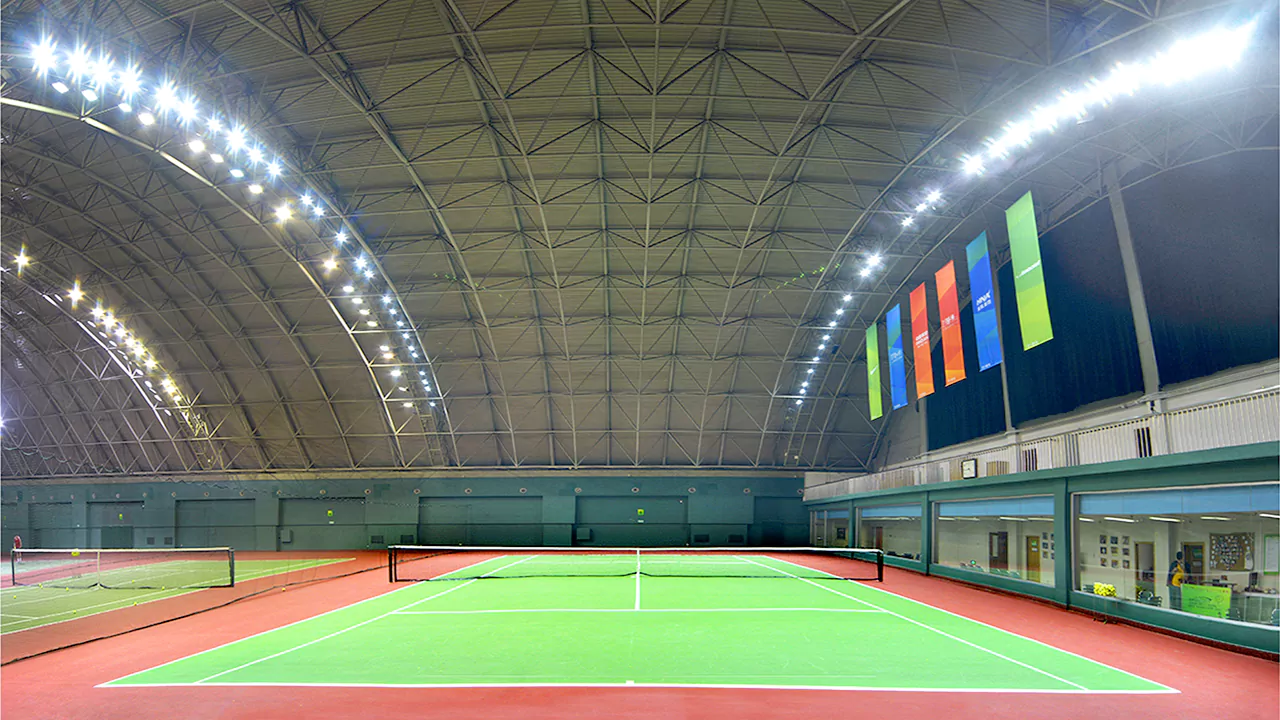

Delivered Tennis Court Projects

Real indoor and outdoor tennis court LED lighting projects delivered worldwide — club, university and competition courts.

All reference projects →

Frequently Asked Questions

Tennis Court Lighting FAQ

What lux level do tennis courts need?

Recreational courts run around 200–300 lux, competition 500–750 lux, and broadcast shows 1000 lux and above. We model the exact figure for your court and level of play.

How many light poles does a tennis court need?

A standard singles court is lit from four corner poles or a pair of high masts; doubles and show courts vary with the surround and the broadcast requirement.

Can these be used for indoor tennis centres?

Yes. The RT and RT410 high-bay models mount to the ceiling for indoor centres, while the FL and M series light the surrounding areas and covered courts.

Are they glare-free for players?

Asymmetric, low-glare optics aim the light onto the court surface, not into the players’ eyes, so the ball stays readable from baseline to net.

Are they suitable for broadcast and slow-motion?

The VSP series carries Vision Strobe Protection for flicker-free super-slow-motion; the modular floods cover training and club coverage without flicker.

Do you supply a photometric study for our court?

Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your court drawing.

Are the tennis court lights UL listed and DLC qualified?

The M Series, RT410 and VSP models are UL Listed and DLC Standard qualified; some other models in the range are not. Tell us the fixture you are specifying and we confirm the listing for that exact model before you order.
