Stadium Lighting

LED Stadium Lighting

Venue lighting is decided by two things: whether the fixture can be aimed without glare into the camera positions, and whether the photometric file matches the seating geometry. SolarOne builds both — broadcast-grade stadium floodlights for televised matches, and modular LED flood lights from 80 W to 1280 W for training grounds and club venues.

Stadium Floodlights

Two platforms cover the brief: the M Series modular floodlight from 80 W to 1280 W for training grounds and club venues, and the VSP series — broadcast-grade, with asymmetric optics and 12 / 18 / 30 / 50 degree distributions for the seating bowl.

/01Area and Site
M Series — LED Area & Site Lighting

M Series

Truly modular design — scalable from a single 1M (80W) module up to 16M (1280W) or beyond. Flexible combination configurations to precisely match any project requirement.

80~1280W+Power
130lm/WEfficacy
/02Sports Lighting System
VSP series — LED Stadium Light

VSP series

Vision Strobe Protection system for broadcast venues. Eliminates flicker in slow-motion replay with stable, high-frequency drive technology.

4200WPower

Choosing the Right Output

Two numbers decide a stadium package: the target illuminance on the playing surface, and the number of mounting points the structure allows. This is the range our delivered projects actually use.

Venue type Typical fixture Distribution Mounting
Professional stadium, televised VSP-XXXXW-12M-YP, 1000 W+ 12 / 18 / 30 / 50° Roof rim, 30–45 m
Training ground, club venue FL6M–FL9M, 480–720 W 12 / 18 / 30 / 50° Pole, 8–12 m
Multi-sport hall, velodrome RT410-RGBW or RT400HB, 400–600 W 60 / 90 / 120° Roof truss, 12–20 m

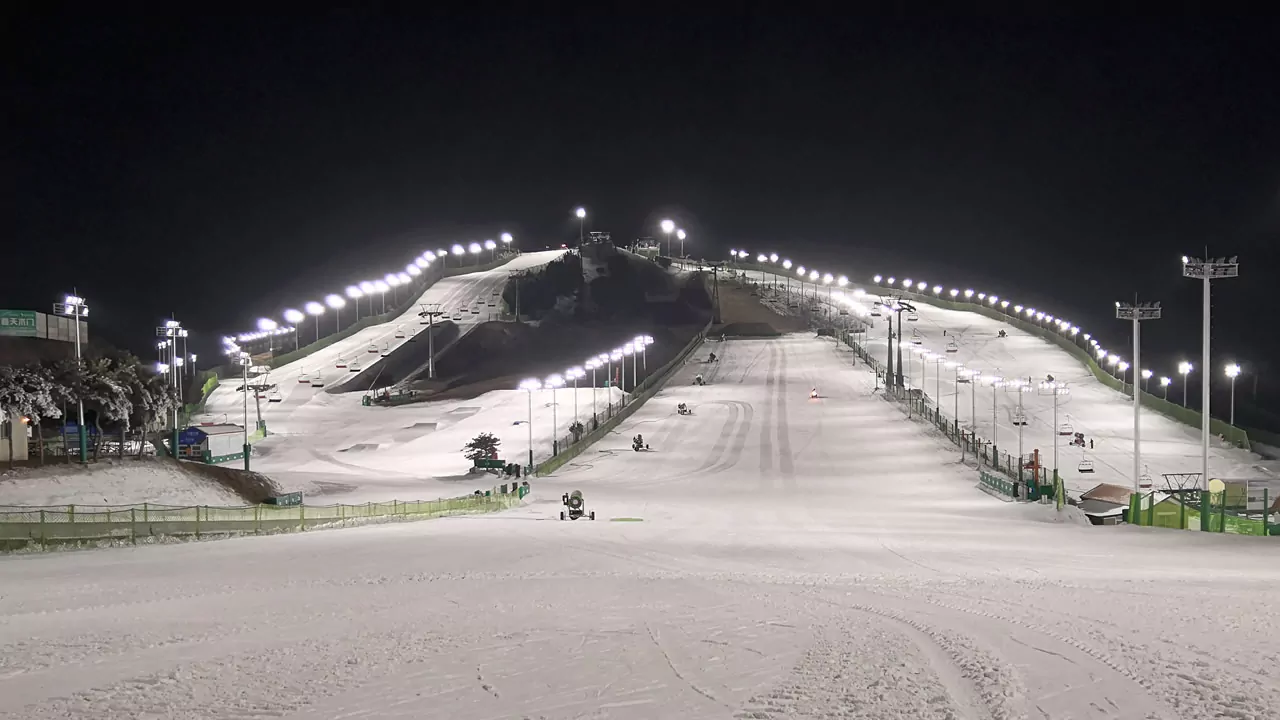

Ski run, karting track FL4M–FL6M, 320–480 W Asymmetric, low glare Pole, 6–10 m

Full photometric data, IES files and DIALux reports are supplied on request — send the venue drawing and mounting height.

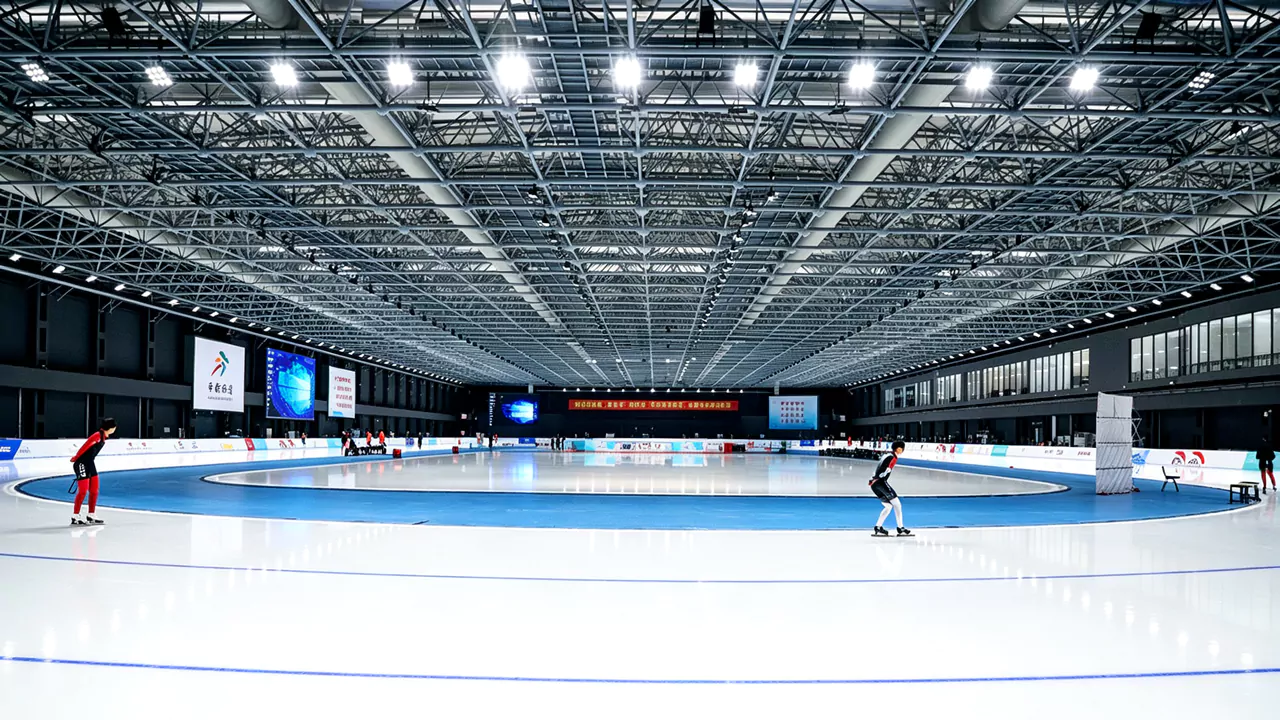

Delivered Venue Projects

2 stadium-class luminaires and venue installations, from club training grounds to an Asian Games velodrome.

All reference projects →

Frequently Asked Questions

Stadium Lighting FAQ

How many masts does a stadium floodlighting package need?

It follows from the target illuminance on the playing surface and the mounting points the structure allows, not from a fixed fixture count. The VSP series is rated 4200 W per system, so a pitch reaches its target output from fewer masts than the high-pressure-scheme it replaces. Send the venue drawing and mounting height and we return a photometric layout with the mast count.

Are these luminaires usable for televised matches and super-slow-motion replay?

Yes. Vision Strobe Protection on the VSP series keeps the output free of the low-frequency flicker that shows up as banding in super-slow-motion replay, and the asymmetric optics are aimed to keep glare out of the camera-side seating.

What beam angles are available?

12°, 18°, 30° and 50° from the same M Series optical platform, coded 12 / 18 / 30 / 50 in the model number. The narrow angles serve the seating bowl, the wider ones the playing surface.

What is the efficacy, lifespan and protection rating?

CRI 70~95, L70 of 100,000 hours at 25 °C, IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.

How is the fixture powered and dimmed?

The remote power system pairs one AC enclosure with n LED driver enclosures, so the drivers sit away from the fixture and are reached without a ladder. Dimming is 1-10 V, DMX, DALI or Zigbee, and both 110–277 VAC and 347–480 VAC inputs are available. Enclosure dimensions follow the project, so they are quoted per order rather than fixed on this page.

Do you supply photometric studies for our venue?

Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.

Are your stadium lights UL listed and DLC qualified?

Yes. The VSP series is UL Listed and DLC Standard qualified — UL for electrical compliance on North American sites, and DLC Standard for utility rebate programmes. Certification documentation ships with the quotation.
