RT400HB 130W
The RT400HB is a 130 W high-bay and low-bay LED luminaire for warehouses, sports halls, workshops and covered industrial areas. Its optical family covers the 30° to 90° beam spread needed from low ceilings to high-bay racks, putting light on the floor and work plane instead of the roof. IP66 protection and a 10 kV surge suppressor suit demanding indoor-industrial and semi-outdoor duty, and the robust housing handles vibration and dust. Sharing the SolarOne build language, the RT400HB pairs with the RT500HB on one bracket platform so a facility can mix wattages across zones. Every order includes a photometric layout matched to your ceiling height and target lux, helping you cut energy use versus legacy HID fittings without sacrificing uniformity.

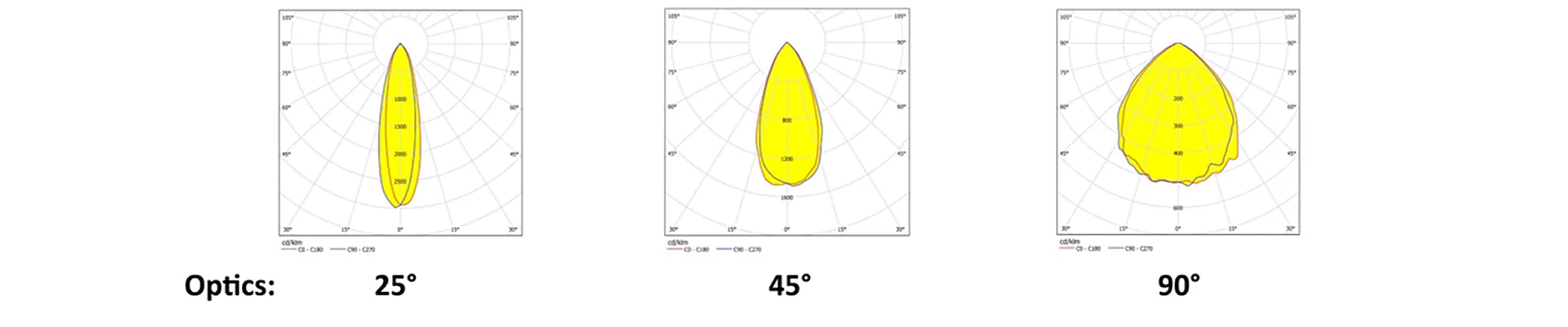

Strahlwinkeltyp:
Abmessungen:
ENERGIE- UND LEISTUNGSDATEN:
| Serienname | RT400HB-130W |
|---|---|
| Lichtstrom | >16,900 lm |
| Systemleistung | 130W |
| CRI | 70-95 |
| Farbtemperatur (Kelvin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Eingangsspannung (Niederspannung) | 110-277VAC |
| L70-Stunden | >100,000 at 25°C |
| Betriebstemperaturbereich | -40°C to 55°C |
| Überspannung (Gleichtakt / Gegentakt) | 10kV |
| IP-Schutzklasse | IP66 |
| L" × B" × H" | 15.6" x 15.6" x 15.8" / 395 x 395 x 401 mm |
| Gewicht ca. | 8.0 kgs( 17.6 lbs) |
| Material | Aluminum / Glass |
| LED-Marke | Bridgelux |
| LED-Treiber | Inventronics Or Equal |
BESTELLINFORMATIONEN:
Modellnummer: RT400HB-130W
Swipe to view all columns →
| Serienname | Systemleistung | CCT | Input Voltage | Abstrahlwinkel | Finish (option) | Dimming (option) | Halterungstyp (Option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| HB=HighBay Light | 130W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) | 25=25° 45=45° 90=90° |
GRY=Grey BLK=Black |
1.0-10V | U = Hang Mount Bracket |
Muster anfordern
Erleben Sie die Qualität und Leistung unserer RT400HB aus erster Hand. Kontaktieren Sie unser Team noch heute für ein kostenloses Muster und eine technische Beratung.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
What mounting height are these luminaires designed for?
The high-bay and low-bay series cover the 30–90° beam family used from warehouses and sports halls up to high-bay applications, and the roadway series ships with an asymmetric 70° × 140° distribution for street lighting.
Can you match an existing installation footprint?
Yes — send us the existing photometric report or IES file and we will confirm whether the same mounting positions and aiming angles work, or supply a replacement layout.
How do I order the right configuration?
Every ordering code follows the same pattern: series name, system wattage, CCT, input voltage, beam angle, finish, dimming and bracket. The ordering table on this page lists every option for this model.
