FL6M 480W
The FL6M is a 480 W LED floodlight producing more than 60,000 lumens at 130 lm/W, with a controlled 18° to 50° beam for high-mast and large-area sites. Its narrow spread targets playing surfaces, yards and aprons precisely, reducing skyglow and glare on neighbouring roads, and IP66 protection with a 10 kV surge protector handles demanding outdoor duty. The FL6M powers high-mast applications such as airports and interchange lighting, where uniform, flicker-free illumination matters for safety and broadcast. Sharing the FL family bracket and optic platform, it scales from the 80 W FL1M to the 1280 W FL16M on one spare-parts set. Every order ships with a photometric layout matched to your venue drawing and target lux.
Strahlwinkeltyp:

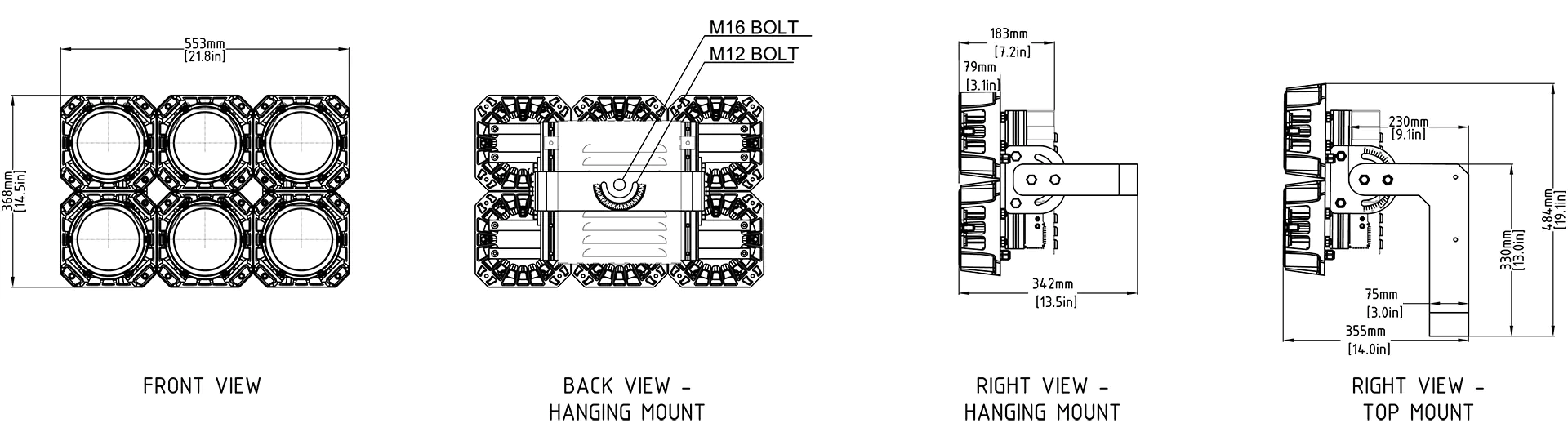

Abmessungen:
ENERGIE- UND LEISTUNGSDATEN:
| Serienname | FL6M-480W |
|---|---|
| Lichtstrom | 62,400lm Typ. |
| Systemleistung | 480W |
| CRI | 70~95 |
| Farbtemperatur (Kelvin) | 3000K-3500K、 4000K-4500k、5000K 、5700K |
| Eingangsspannung (Hochspannung) | 347~480VAC |
| Eingangsspannung (Niederspannung) | 110~277VAC |
| L70-Stunden | 100,000 at 25°C |
| Betriebstemperaturbereich | -40°C to 55°C |
| Überspannung (Gleichtakt / Gegentakt) | 10kV |
| IP-Schutzklasse | IP66 |
| Effektive projizierte Fläche (EPA) bei 90° | 1.58 (sq. ft.) |
| L" × B" × H" | 21.8" X 14.5"X 8.1"/553*368*343mm |
| Gewicht ca. | ( 37 lbs) 16.8 kgs |
| Material | Aluminum / Glass |
| LED-Marke | Bridgelux |
| LED-Treiber | Inventronics Or Equal |
BESTELLINFORMATIONEN:
Modellnummer: FL6M-480W-30K-S
Swipe to view all columns →
| Serienname | Systemleistung | CCT | Input Voltage | Abstrahlwinkel | Finish (option) | Dimming (option) | Halterungstyp (Option) | LED Driver Location |
|---|---|---|---|---|---|---|---|---|
| FL6M (Light With 6 Module) | 480W | 30=3000K 40=4000K 57=5700K |
S=Standard Voltage (110-277VAC) H=High Voltage (347-480VAC) |
12=12° 18=18° 30=30° 50=50° |
GRY=Grey BLK=Black |
1.0-10V 2. DMX 3. DALI 4.Zigbee |
U = Hang Mount Bracket L = Sitting Mount Bracket |
W = With Fixture S = Separated from Fixture |
Muster anfordern
Erleben Sie die Qualität und Leistung unserer FL6M aus erster Hand. Kontaktieren Sie unser Team noch heute für ein kostenloses Muster und eine technische Beratung.
Product FAQ
What is the luminous efficacy and rated lifespan?
Up to 130 lm/W, with an L70 lifetime exceeding 100,000 hours.
What ingress and surge protection do the luminaires have?
IP66 ingress protection, 10 kV surge protection, and an operating range of −40 °C to +55 °C.
Do you provide DIALux photometric studies?
Yes. Our engineering team delivers a full photometric proposal — layout, illuminance and uniformity — within 48 hours of receiving your venue drawing.
How much energy can we save versus existing HID / metal-halide lighting?
Retrofits typically cut energy use by 50% or more while improving uniformity.
Which beam angle should I choose for my application?
Narrow 30–50° beams concentrate light for tall facades and signage, while 100–120° options cover yards, loading lots and perimeter poles. Each ordering code lists the available angles for that series.
What mounting options are available?
U = hang-mount bracket and L = sitting-mount bracket, both available across the floodlight range. Finish and dimming options (1.0-10V, DMX, DALI, Zigbee) are listed in the ordering table.
